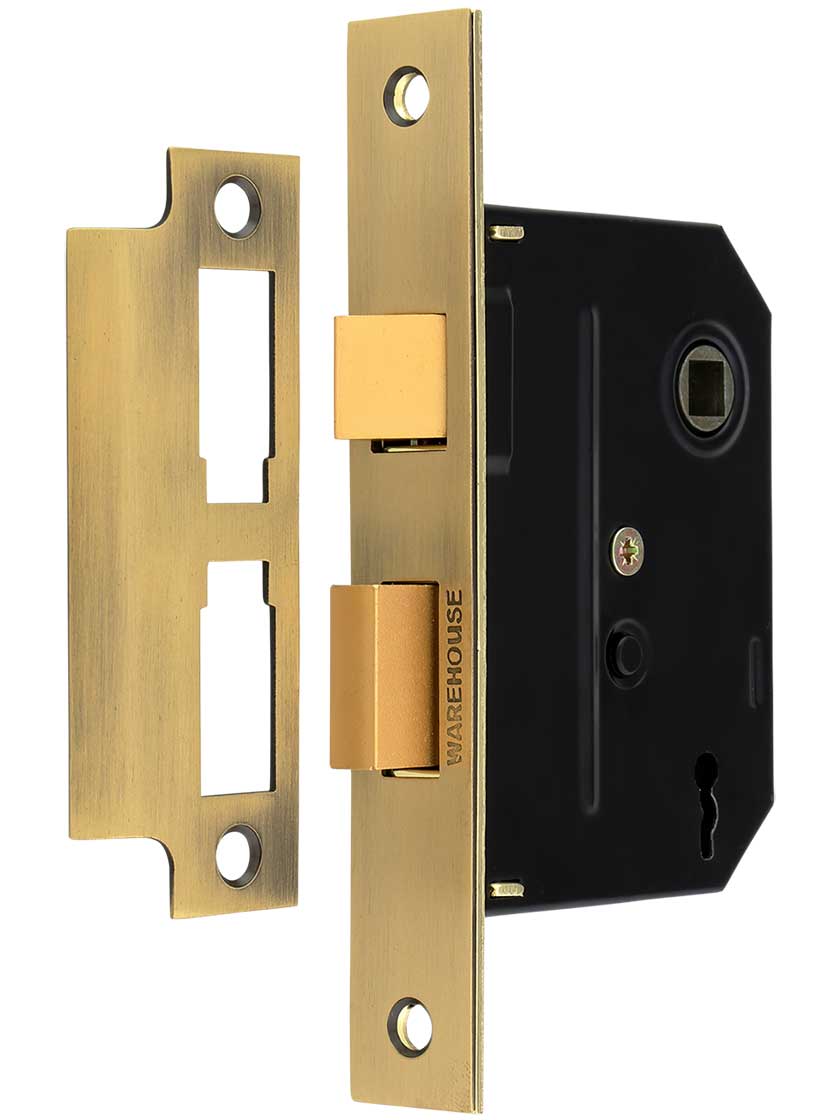

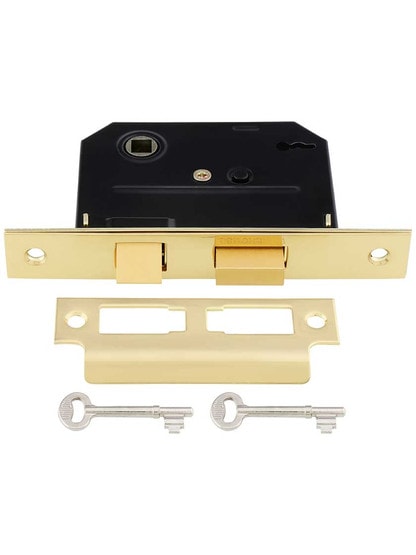

This high-quality mortise lock is an excellent choice for new doors, or as a replacement for a worn or broken early 20th century lock. It features premium precision components, a solid-brass faceplate and strike, and a steel case. The set comes complete with two brass skeleton keys and is reversible for left or right-hand doors. Available in an array of our most popular finishes, it’s suited for almost any décor.
When using this as a replacement lock, it is important to measure existing cutouts on your door, including the backset, face plate, and mortise pocket. Some modification of your cutouts may be required.

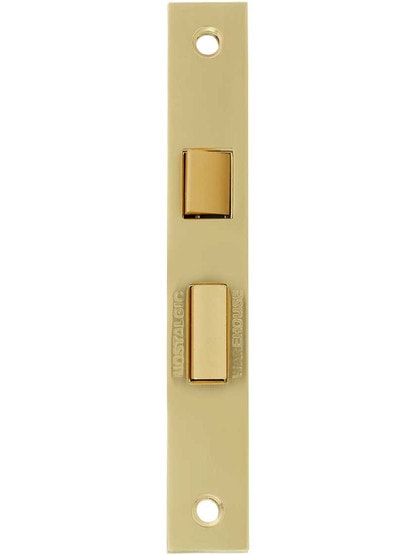

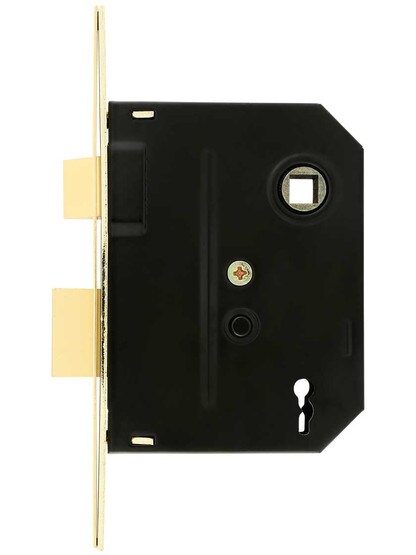

Dimensions. Faceplate: 6" T x 7/8" W. Strike Plate: 4" T x 7/8" W with a 1/2" tongue. Lock Box: 4" T x 5/8" W x 3" D. The distance from the center of the knob hub to the center of the round part of the keyhole is a standard 2 1/4". The backset is 2 1/4".
Backset:On a lock or latch this is the distance from the front of the face plate to the center of the door knob hub. Learn about hardware >
Product Videos
Reviews
Product Q & A
Adding Items to Cart...
Step 1 Choose Your Function
Passage
Complete non-locking latch set used on most interior doors
Privacy
Complete locking latch set for bedroom and bathroom doors
Double Dummy
Non-latching set with two handles for non-bored closet and double doors
Single Dummy
Non-latching handle for non-bored closet and pantry doors
Step 2 Choose Your Backset
The "backset" is the distance from the edge of your door to the center of the hole bored in your door. Choose from 2⅜" (standard) or 2¾". Measure carefully to ensure proper fit.
or
Choosing a Keying Option for Your Entry Door Set
Single Cylinder Lock:
Key operated from the outside, thumbturn operated from the inside.
Double Cylinder Lock:
Key operated from both inside and outside. Note: Key required for egress.
How to Determine Your Backset
The "backset" is the distance from the edge of your door to the center of the hole bored in your door. Choose from 2⅜" (standard) or 2¾". Measure carefully to ensure proper fit.
or
How to Determine Your Backset
The "backset" is the distance from the edge of your door to the center of the hole bored in your door. Choose from 2½" or 2¾". Measure carefully to ensure proper fit.
or
How to Determine Handing
Stand in the frame of the door with your back to the hinges. If the door swings to your right, it is a RIGHT HAND door. If the door swings to your left, it is a LEFT HAND door.
RIGHT HANDED (RH)
LEFT HANDED (LH)
How to Determine Handing
Stand in the frame of the door with your back to the hinges. If the door swings to your right, it is a RIGHT HAND door. If the door swings to your left, it is a LEFT HAND door.
