Polished Brass Polished
Brass
Antique Brass Antique
Brass
Polished Chrome Polished
Chrome
Polished Nickel Polished
Nickel
Satin Nickel Satin
Nickel
Oil-Rubbed Bronze Oil-Rubbed
Bronze
Antique Pewter Antique
Pewter
ZOOM LARGE/ALTERNATE VIEWS
Features
  • Forged Solid Brass for Crisp Detail
  • Match any Decor with an Array of Finish Options
  • Period Design Offers Elegant Style
  • Heavy-Duty Spring Assisted Knobs
  • Designed for Pre-Drilled Doors
Details
Style Colonial
Item Sold As Set
Included Hardware All necessary mounting accessories
Usually Ships In 3 to 5 Business Days More info >
Warranty 5 Year Warranty
Read Product Questions & Answers




Quantity:




Description & Dimensions

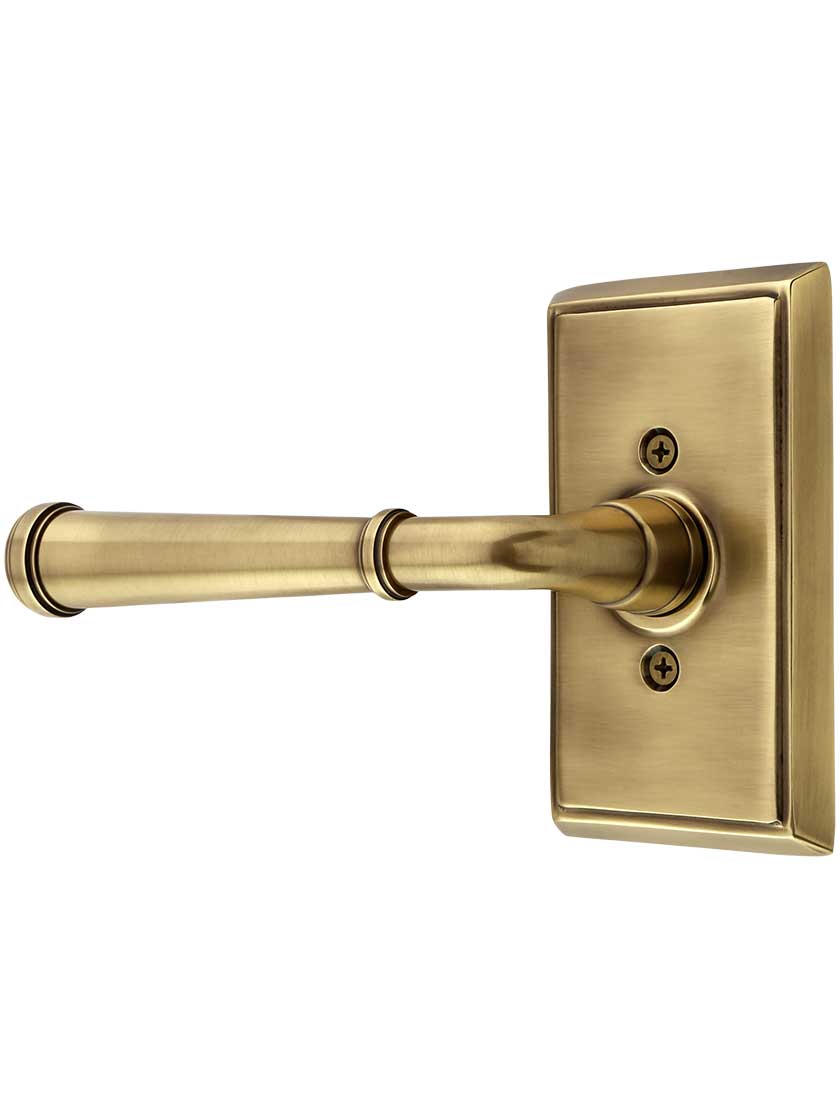

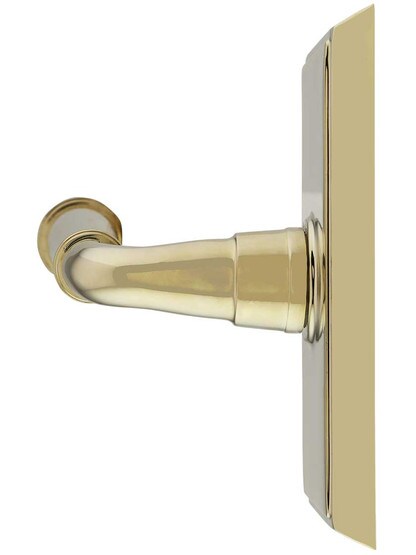

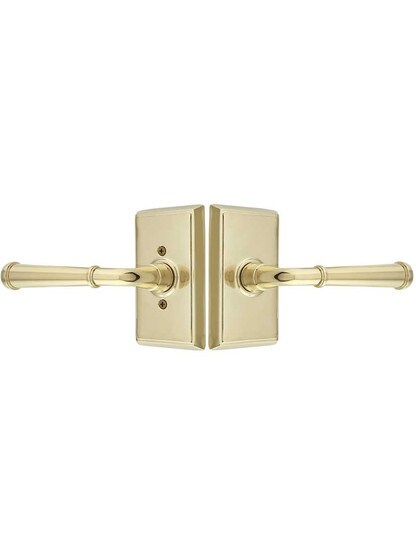

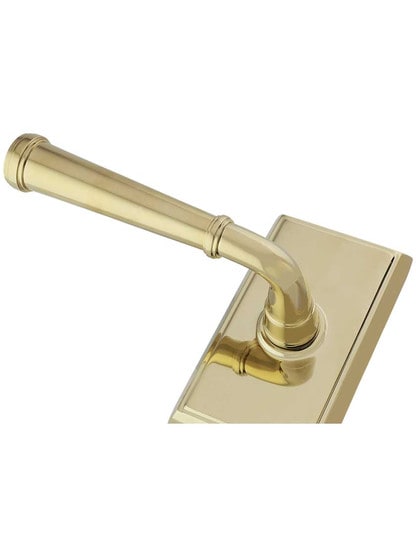

Tasteful and timeless, our Rectangular Rosette Door Set with Merrimack Levers offers enduring style and quality. With classic square escutcheons and a host of traditional finishes, they complement any style of decor. Heavy-duty spring assisted levers simplify installation, and ensure ultra-smooth operation. Finely crafted from solid forged brass, this lovely door set will provide you a lifetime of beauty and superior performance.

Dimensions:
Door set:
Lever: 5 1/8" L x 7/8" W x 2 5/16" projection
Rosette: 4 3/8" H x 2 9/16" W x 3/8" Thick
Latch:
Latch case: 7/8" D
Latch face plate: 2 1/4" H x 1" W
Standard door range: 1 1/4" to 2" thick (available up to 3" call to order)



Hardware Tip:
Tubular Latch: A cylindrical door latch that is installed into the edge of the door and is operated by a knob or lever via the spindle. Learn about hardware >
Door Set Functions
Function Description Includes
Passage
Passage Function
Latch but no lock - The levers turn and operate a latch but there is no locking ability. Typically found on interior doors that don't need to lock, or doors with a separate deadbolt.
  • 2 Levers
  • 2 Rosettes
  • 1 Passage Latch with matching face plate
  • 1 Matching strike plate
  • Matching screws
  • All necessary mounting accessories
Privacy
Privacy Function
Latch and lock - This set has a privacy pin next to the knob which is pushed to lock and pulled to unlock. The door can also be unlocked from the outside by pushing a small screwdriver through the emergency release hole. Typically found on bedroom or bathroom doors.
  • 2 Levers
  • 2 Rosettes
  • 1 Privacy Latch with matching face plate and privacy pin
  • 1 Matching strike plate
  • Matching screws
  • All necessary mounting accessories
Double Dummy
Double Dummy
No latch or lock - the levers on this doorset don't turn or operate a latch. Typically found on closet doors or the passive door in a set of double doors. This set can't be installed on a pre-drilled door.
  • 2 Levers
  • 2 Rosettes
  • Matching Screws
  • All necessary mounting accessories
