Premium Privacy Pocket-Door Mortise Lock Set with Square Pulls

Your Selection:

Select Your Finish:


$327.90 - $367.90
Quantity discounts available
QuantityPrice
Item #: RS-06UN-FH23PD8440X

Description

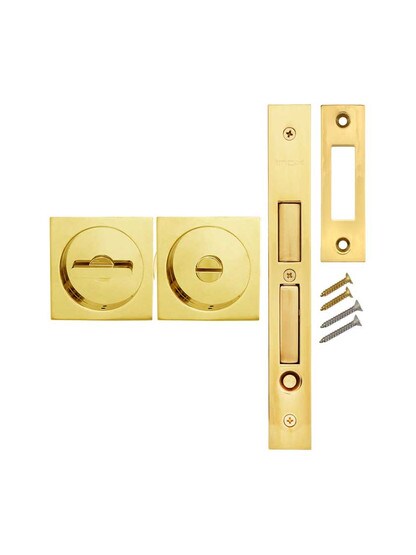

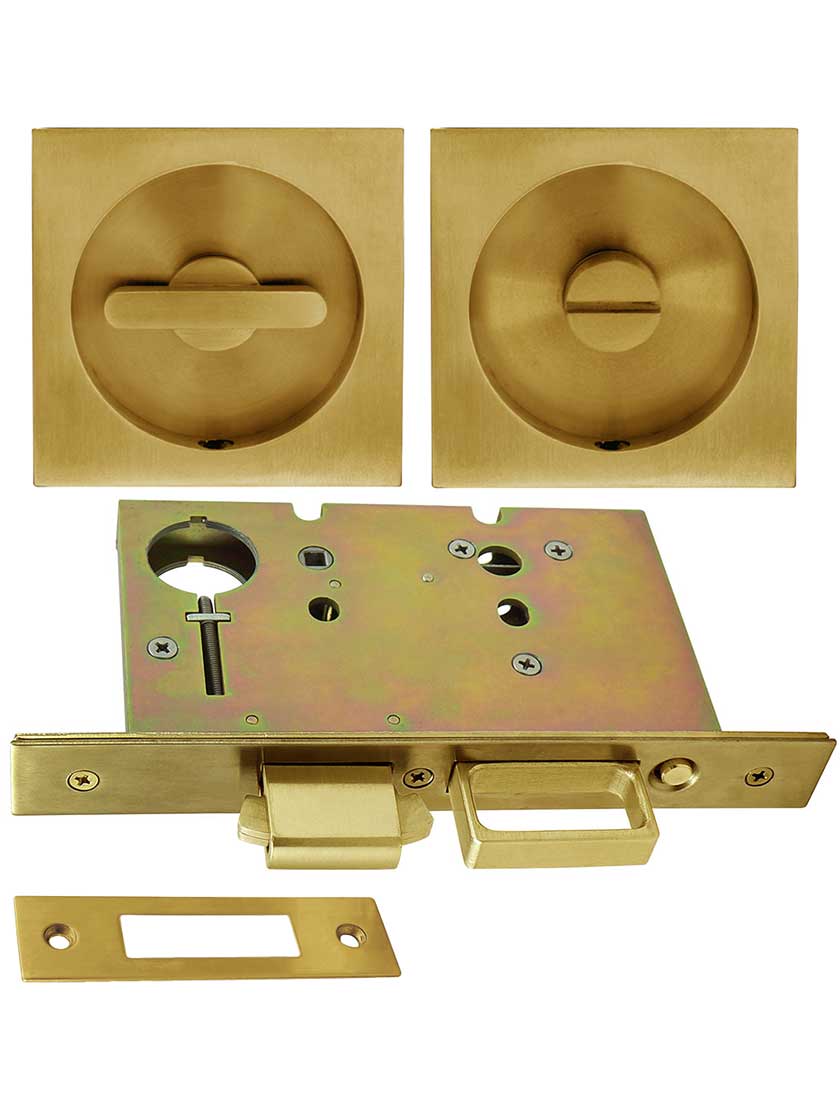

"Refined simplicity" defines the timeless style and charm of our Premium Privacy Pocket-Door Mortise Lock Set with Square Pulls. Beautifully designed and crafted, it features a convenient spring-loaded edge pull for quiet, smooth operation. The depth-adjustable strike makes it easier to install, while self-retractable wing hooks on the latch prevent scratches to the opposite surface. For a complete double pocket door set, combine this locking set with our matching dummy mortise set. Choose from a wide assortment of lustrous finishes.

The lock is activated from the inside by the bow-shaped thumb turn. The latch bolt is held in place by the included strike or dummy mortise case (for double doors - purchase separately). An emergency release button on the exterior allows the door to be unlocked with a common screwdriver.

Dimensions: Pulls - Outer: 2 3/8" H x 2 3/8" W, Inner: 2 3/32" Dia.. Mortise Depth: 23/64" (9mm). Surface plate: 5/64" (2mm) thickness. Screws: 2ea #6 wood.
Backset: 2 3/4". Standard Door Thickness: 1 3/4". Thick door kits and other backsets available, call for details. Lock Case: 6" H x 3 21/32" W x 11/16" Thick (152 x 93 x 17mm). Faceplate: 8" H x 1" W x 3/32" (2mm) Thick. Vertically Adjustable Strike: 3 1/2" H x 1" W x 1 3/32" depth.

Installation

Installation Instructions

How to install this product in a typical situation.

Hardware Tip

The thickness of your pocket door must be greater than the sum of the mortise depth measurements for two pulls plus the thickness of the lock case.
