Premium Passage Tubular Door Latch with Solid Brass Face & Strike Plates

Your Selection:

Select Your Finish:

Quantity discounts available
Item #: R-01HH-550-PAX

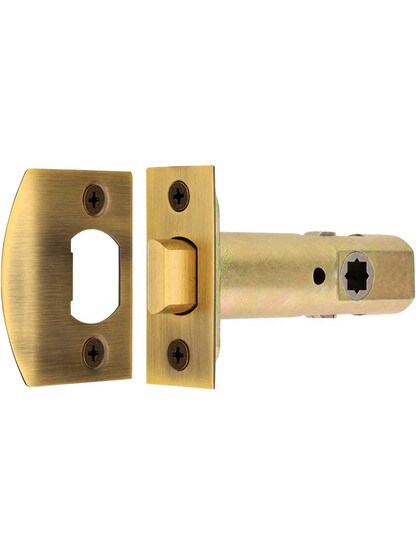

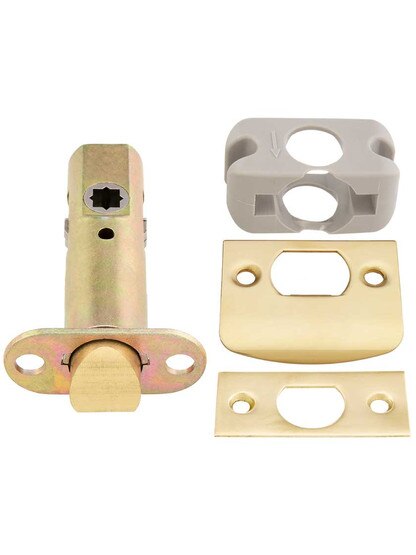

Our premium passage tubular door latch is an excellent choice for restoration, replacement and new construction. The solid brass face plate, standard strike and included T-strike come in a full range of finishes for matching up with other hardware. Precision components provide silky-smooth operation and the high quality, heavy duty materials ensure long lasting performance.

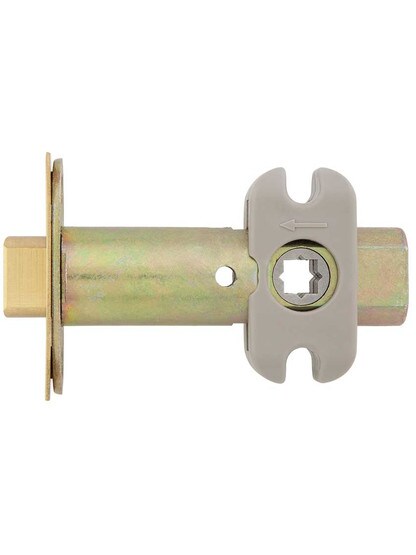

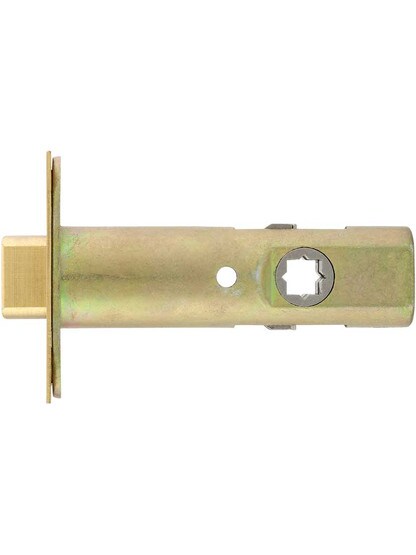

Latch Case: 15/16" D x 3 1/2" L (2 3/8" backset), 3 5/8" L (2 3/4" backset)

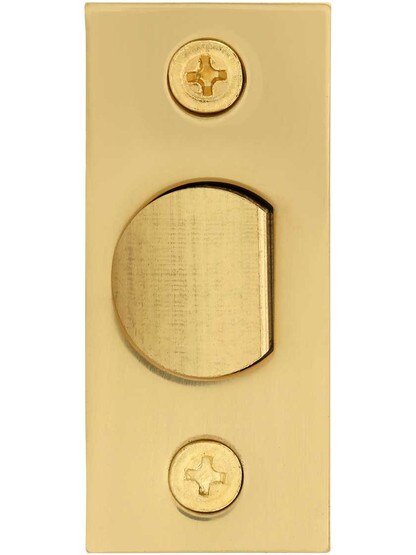

Face plate: 2 1/4" H x 1" W
Strike plate: 2 1/4" H x 1 3/4" W

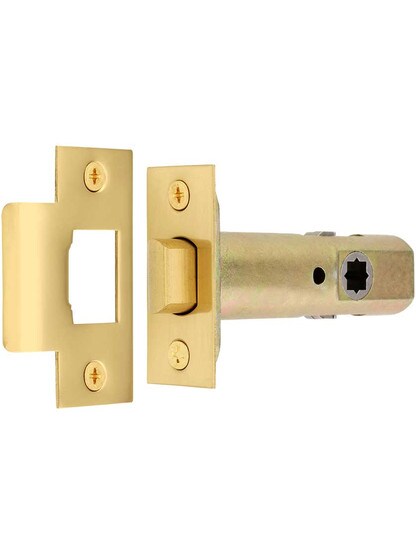

T-Strike plate: 2 3/4" H x 1 1/8" W, 1 3/4" W w/ tongue
Tongue: 1 9/16" H x 5/8" W
Fastener/s: #8 (M4) x 3/4" wood screws
Spindle sizes: 7mm, 8mm, and 9/32"

Hardware Tip

Tubular Latch: A cylindrical door latch that is installed into the edge of the door and is operated by a knob or lever via the spindle. These are typically used for modern pre-bored doors.
