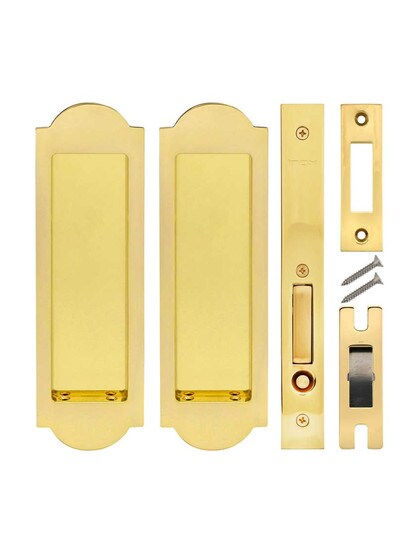

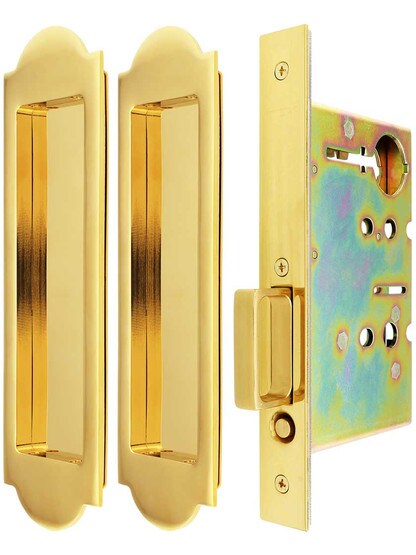

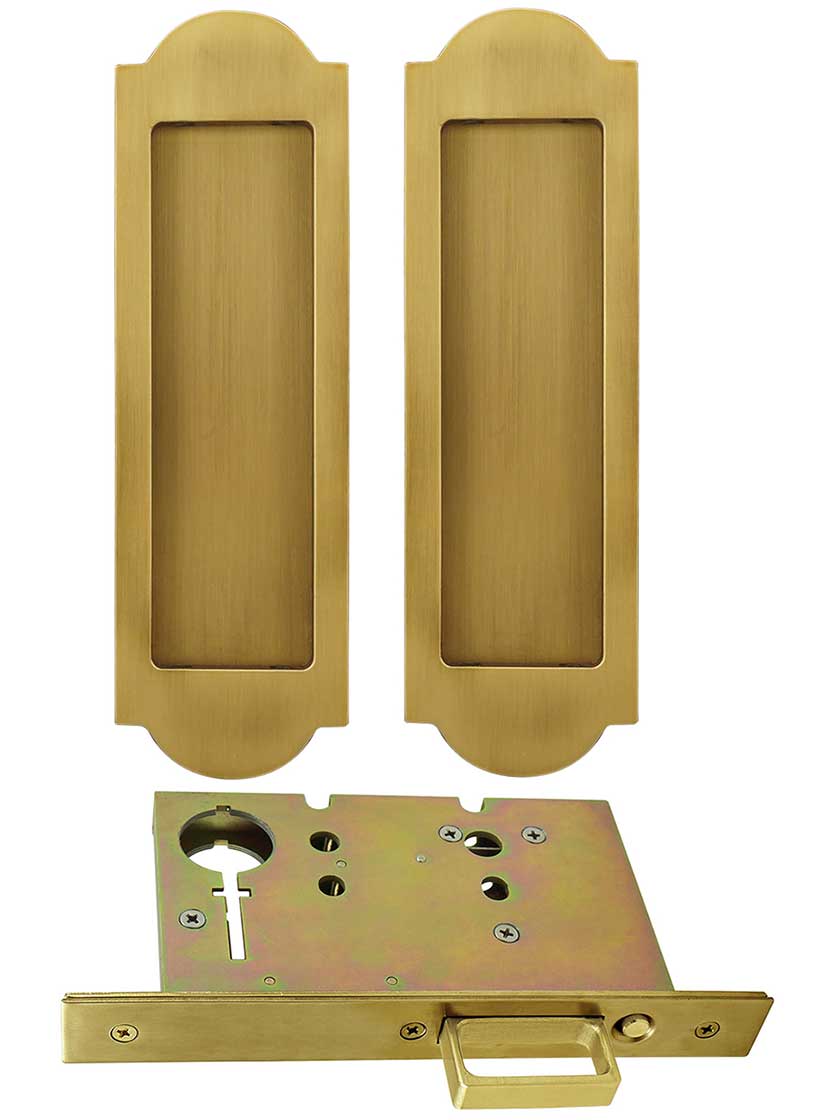

Premium Passage Pocket-Door Mortise Lock Set with Arched Pulls

Your Selection:

Select Your Finish:

$407.90 - $527.90
Quantity discounts available
Item #: RS-06UN-FH31PD8010X


Simple, elegant, and refined, our Premium Passage Pocket-Door Mortise Lock Set is an excellent choice for a variety of interiors. Beautifully designed and crafted, it is suited for single and double non-locking pocket doors. To release the integrated edge pull, simply push the button located below the pull. Choose from a wide assortment of lustrous finishes.

Dimensions: 7 7/8" H x 2 23/64" W x 5/64" thick. Recess: 6 23/64" H x 1 31/32" W. Mortise: 23/64" deep. Lock case: 3 21/32" D x 6" H x 11/16" W. Faceplate: 8" H x 1" W. Backset: 2 3/4". Standard Door Thickness: 1 3/4". Thick door kits and other backsets available, call for details. The screw holes for attaching are concealed on the sides of the recess.


Installation Instructions

How to install this product in a typical situation.

Hardware Tip

The thickness of your pocket door must be greater than the sum of the mortise depth measurements for two pulls plus the thickness of the lock case.


Product Specifications

Dimensions, specifications and detailed product info
