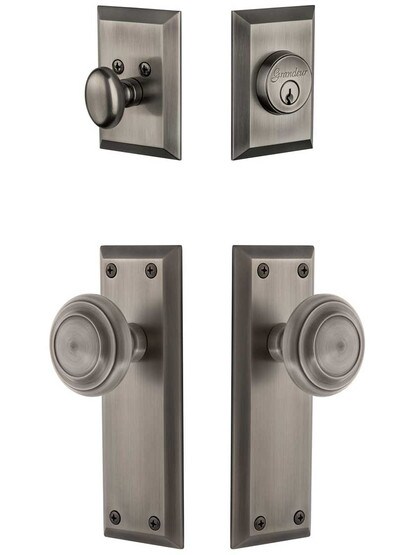

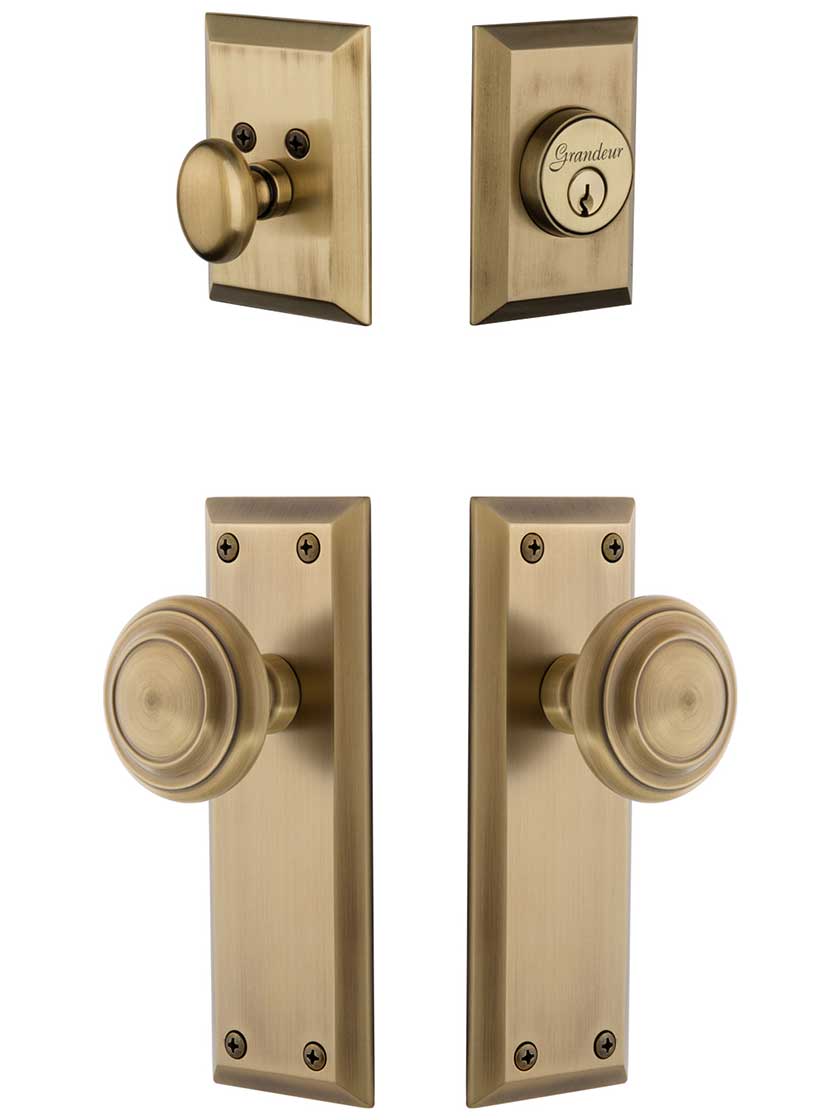

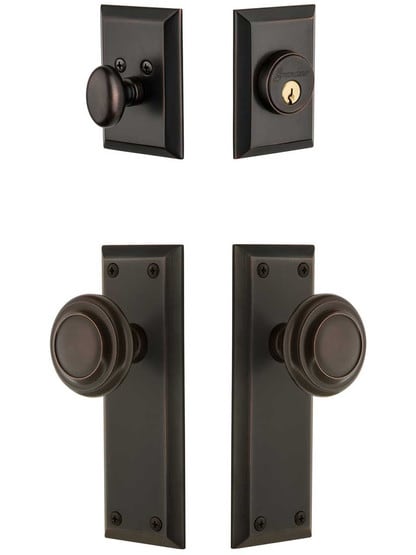

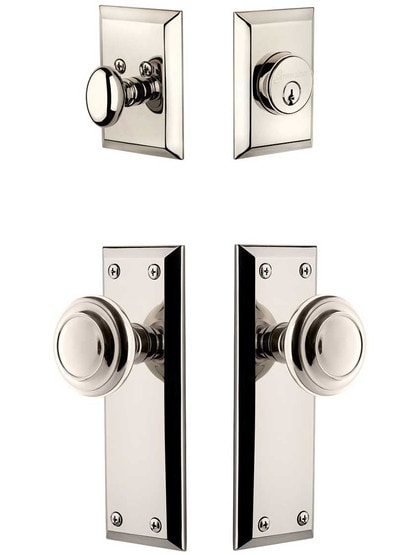

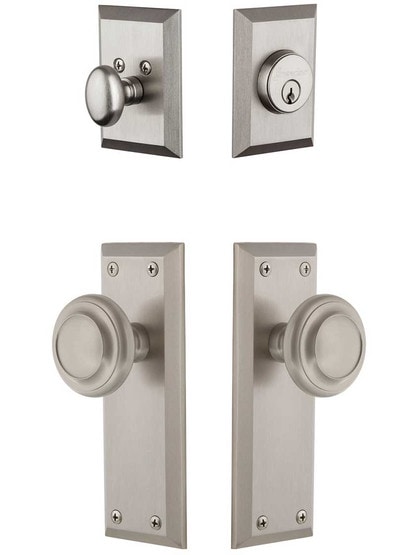

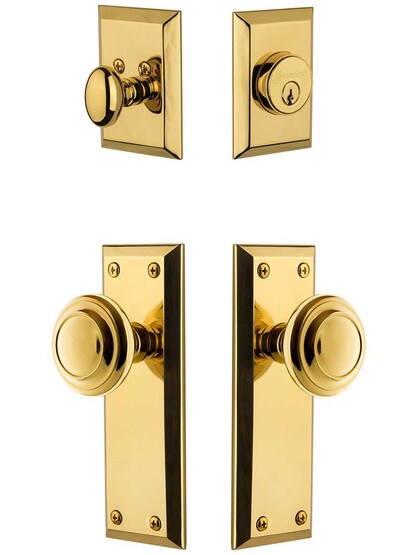

The Grandeur Fifth-Avenue Entry Door Set with Circulaire Knobs has a universal appeal that works well with almost any home. Created expressly for modern, pre-drilled doors, installation is quick and easy for professionals or home owners alike. Exceptional solid brass forgings and a 10-year warranty make Grandeur entry hardware the perfect choice for your fine home.
Door set dimensions: Circulaire doorknobs measure 2 3/8" D x 2 1/2" projection. Backplates are 7 1/4" H x 2 1/2" W.
Latch dimensions: Backset is 2 3/8" or 2 3/4" - specify when ordering. Latch case: 1" diameter. Latch face plate: 2 1/4" H x 1" W.
Deadbolt specs: Decorative face plates are 3 1/2" H x 2 1/2" W. The deadbolt has a pick-resistant Schlage C keyway and a 1" throw. Multiple sets on one order will be keyed alike unless otherwise requested. To key individually or to match a specific key number, please call to place your order.
This set will fit doors from 1 3/4" - 2" in thickness, with a minimum 5 1/2" center to center boring for the latch and deadbolt. A "thick door kit" for doors from 2 1/4" - 2 1/2" in thickness is available for a small fee. Please call for details.
Tubular Latch: A cylindrical door latch that is installed into the edge of the door and is operated by a knob or lever via the spindle. These are typically used for modern pre-bored doors. Learn about hardware >
Door Set Functions
Function
Description
Includes
Entry
Latch and lock - The door is opened by a knob/lever on the exterior and on the interior. The locking deadbolt is operated by a key from the outside and by a thumbturn on the inside.
2 Knobs/levers
2 Back plates/rosettes
1 Lock cylinder with matching backplate
1 Thumbturn with matching backplate
2 Keys
1 Passage latch with matching face plate
1 Deadbolt with matching face plate
1 Matching latch strike plate
1 Matching deadbolt strike with reinforcer
Matching screws
All necessary mounting accessories
Product Videos
Reviews
Product Q & A
Adding Items to Cart...
Step 1 Choose Your Function
Passage
Complete non-locking latch set used on most interior doors
Privacy
Complete locking latch set for bedroom and bathroom doors
Double Dummy
Non-latching set with two handles for non-bored closet and double doors
Single Dummy
Non-latching handle for non-bored closet and pantry doors
Step 2 Choose Your Backset
The "backset" is the distance from the edge of your door to the center of the hole bored in your door. Choose from 2⅜" (standard) or 2¾". Measure carefully to ensure proper fit.
or
Choosing a Keying Option for Your Entry Door Set
Single Cylinder Lock:
Key operated from the outside, thumbturn operated from the inside.
Double Cylinder Lock:
Key operated from both inside and outside. Note: Key required for egress.
How to Determine Your Backset
The "backset" is the distance from the edge of your door to the center of the hole bored in your door. Choose from 2⅜" (standard) or 2¾". Measure carefully to ensure proper fit.
or
How to Determine Your Backset
The "backset" is the distance from the edge of your door to the center of the hole bored in your door. Choose from 2½" or 2¾". Measure carefully to ensure proper fit.
or
How to Determine Handing
Stand in the frame of the door with your back to the hinges. If the door swings to your right, it is a RIGHT HAND door. If the door swings to your left, it is a LEFT HAND door.
RIGHT HANDED (RH)
LEFT HANDED (LH)
How to Determine Handing
Stand in the frame of the door with your back to the hinges. If the door swings to your right, it is a RIGHT HAND door. If the door swings to your left, it is a LEFT HAND door.
