Classic Brass Cremone Bolt - 4-Foot Length
Description

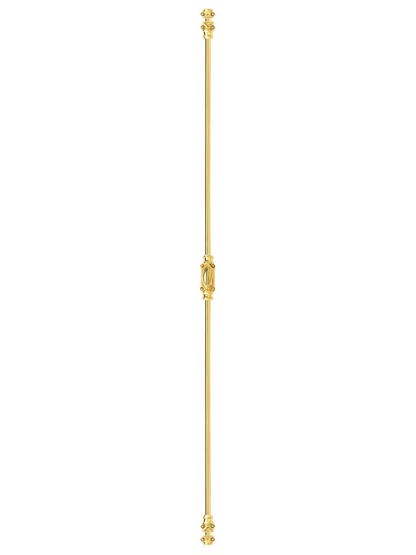

This stately Regency-style 4-foot cremone bolt has a timeless quality - the design's classic arches and curves convey a dignified feel. Made from solid brass it is a lovely way to upgrade smaller casement windows, cabinets, and furniture.
Dimensions:
Bolt rods: 24" L x 1/2" W
Gearbox: 4 1/8" H x 1 1/2" W x 2" Projection
Knob: 2" L x 7/8" W
End guides: 1 9/16" H x 1 5/16" W
Surface strikes: 1" H x 1 3/8" W
Mortise strikes: 1 1/2" x 5/8" W
Fastener/s: #6 x 3/4" and 1 3/16" wood screws
Dimensions:
Bolt rods: 24" L x 1/2" W
Gearbox: 4 1/8" H x 1 1/2" W x 2" Projection
Knob: 2" L x 7/8" W
End guides: 1 9/16" H x 1 5/16" W
Surface strikes: 1" H x 1 3/8" W
Mortise strikes: 1 1/2" x 5/8" W
Fastener/s: #6 x 3/4" and 1 3/16" wood screws

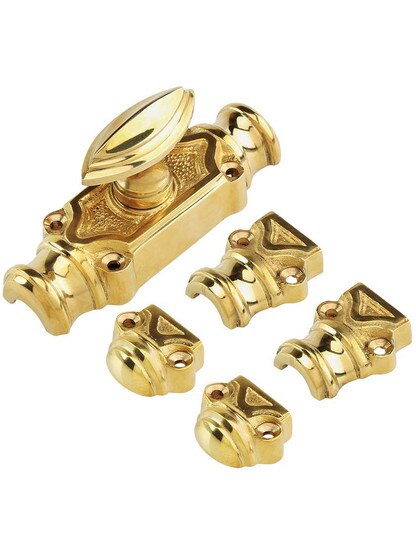

Included Hardware

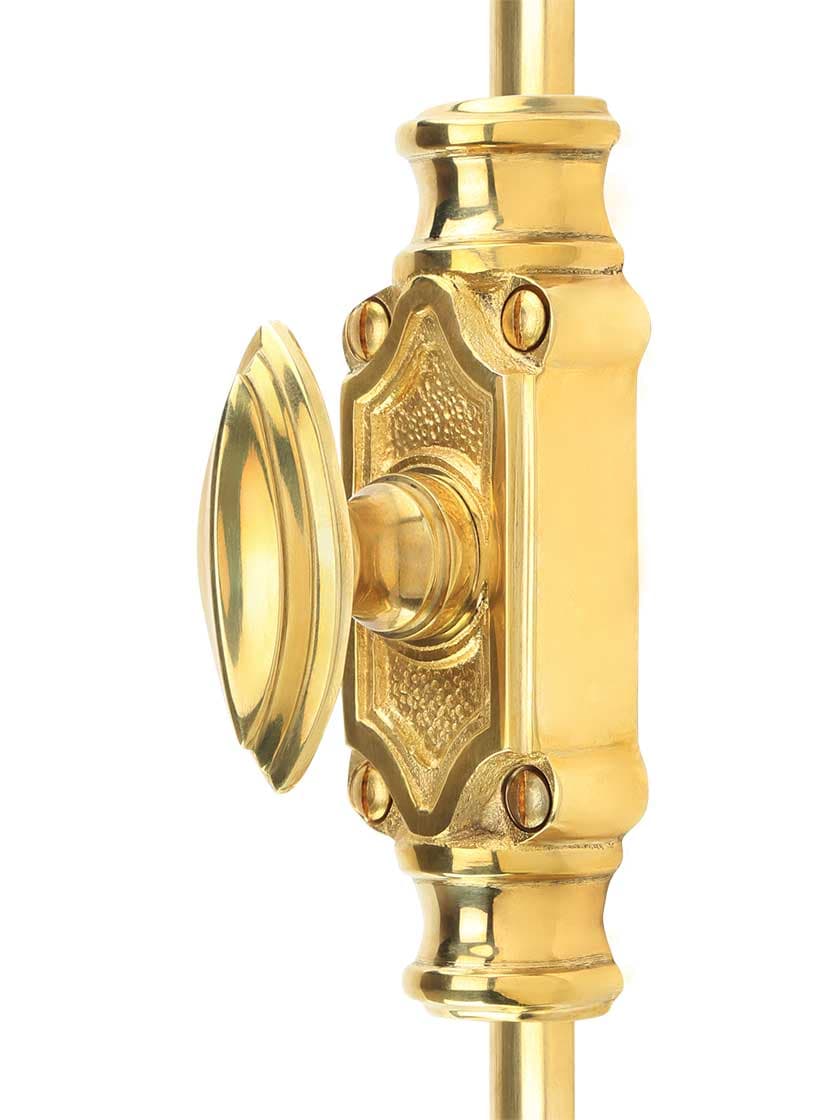

Pictured in Un-Lacquered Brass.(click to close)
Hardware Tip
Cremone bolts, surface mounted and spanning the height of a door or window, have upper and lower rods which extend to lock into the top and bottom of the frame when the knob or lever is turned.
