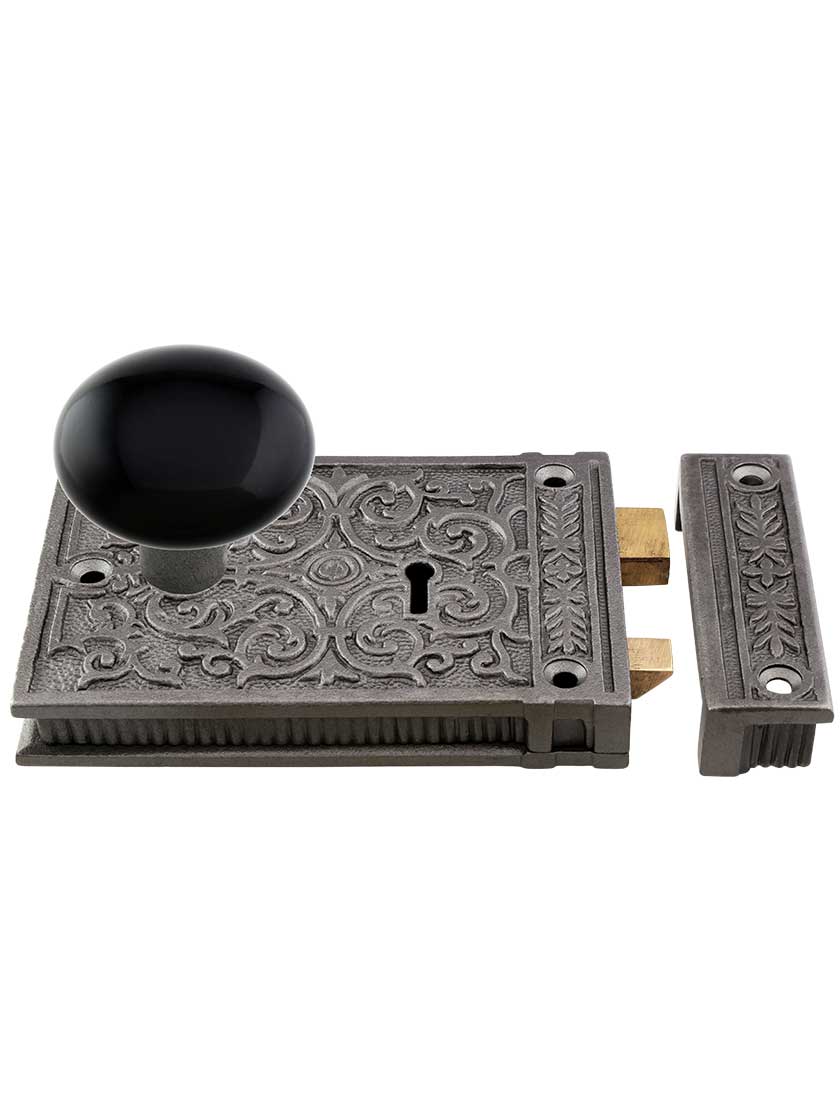

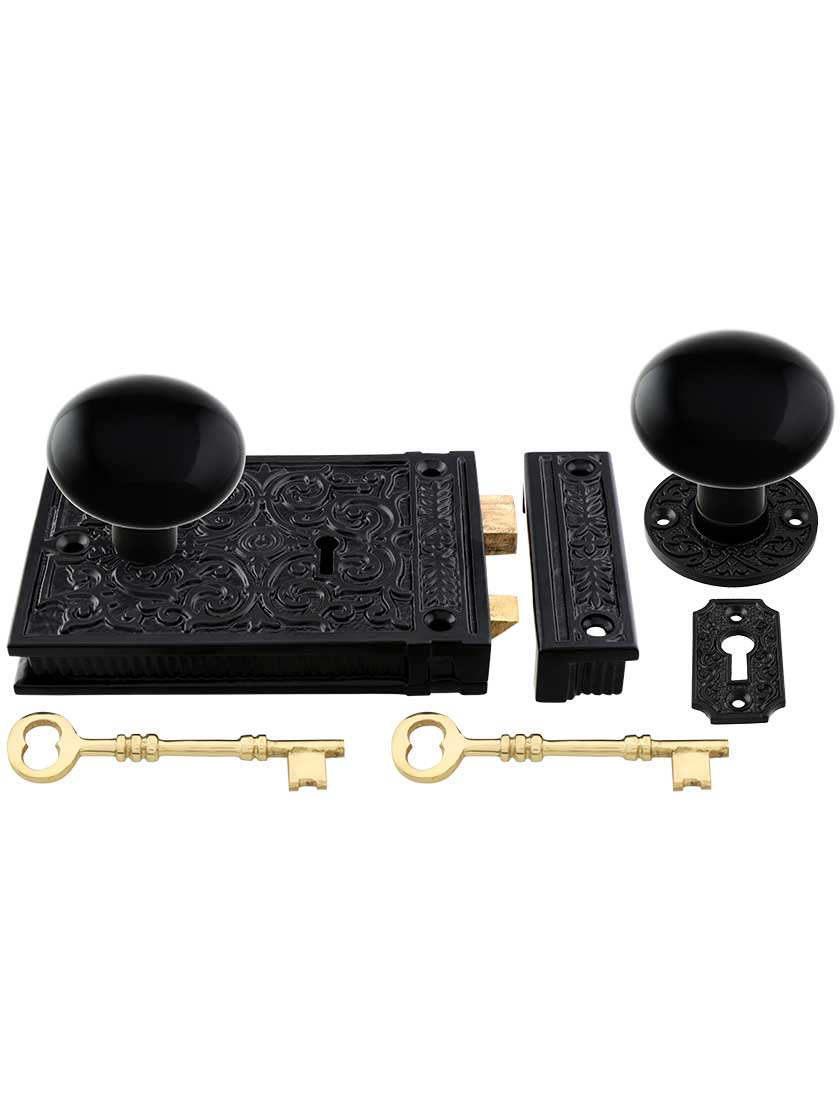

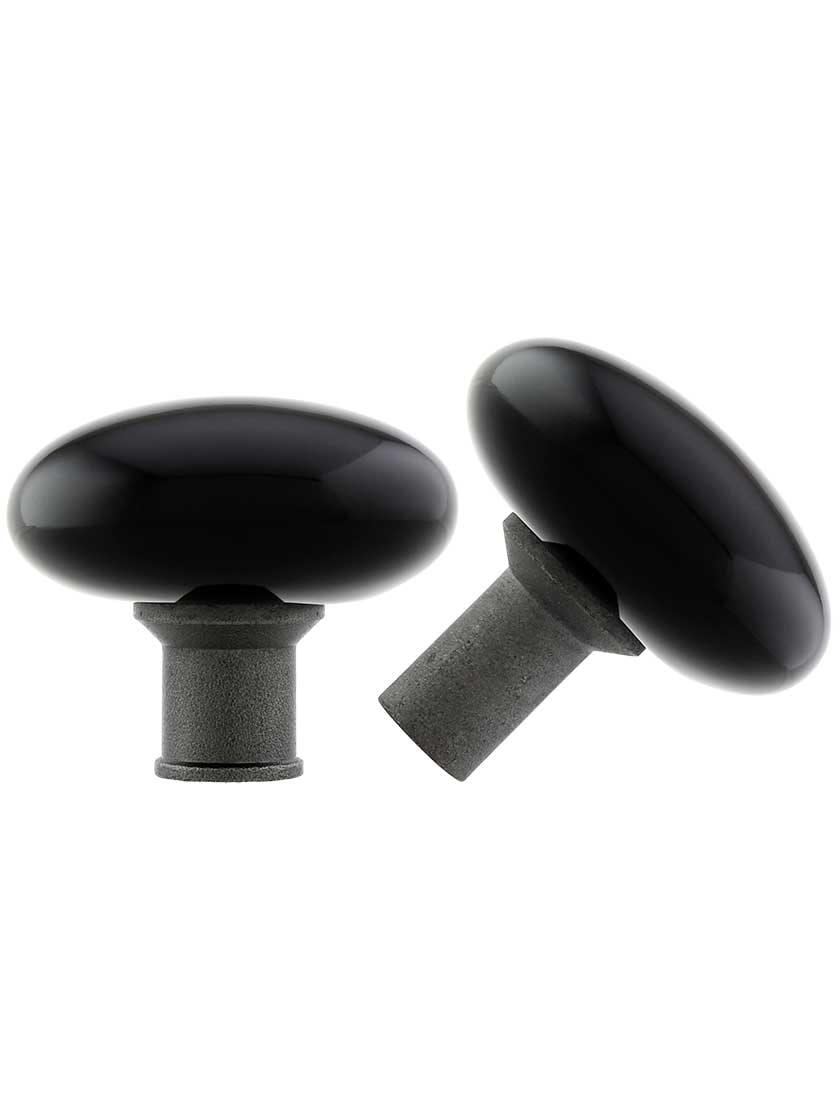

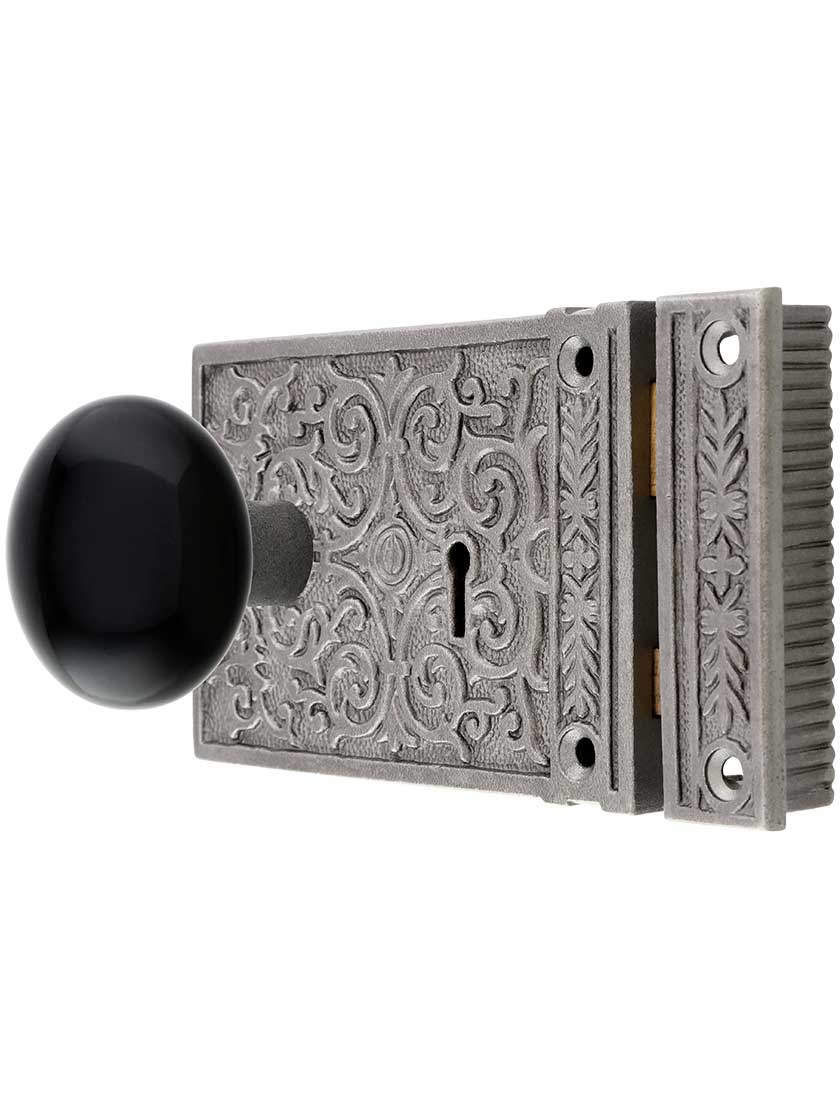

Exquisite in every detail, this complete Victorian rim lock set will please the most discerning restorer. Dating from the 1870s, the ornate design is carefully recreated in cast iron available in two vintage finishes. As functional as it is beautiful, the set features jet black porcelain knobs, mostly brass interior parts and a key-operated deadbolt. It also includes a rosette, keyhole cover and two skeleton keys. Easily reversible for right or left handed doors.
Dimensions: Lock body: 5 1/4" W x 3 5/8" H x 3/4" Thick. Keeper: 3 5/8" H x 1 1/16" W x 3/4" Thick. Backset: 3 7/8". Knobs: 2 3/8" diameter. Rosette: 2" diameter. Keyhole cover: 1 15/16" H x 1 1/8" W.
Door Thickness: 1" to 1 3/4". Spindles: Includes 3 1/2" & 4" lengths both 20 TPI and 9/32" W. Use 3 1/2" spindle for 1" to 1 1/2" thick doors, use 4" for 1 5/8" to 1 3/4" thick. Includes an Allen wrench and set screws for mounting knobs to spindle.
Rim locks are attached to the surface of a door operated by a knob or lever. Rim locks are mounted on in-swing doors on the inside of a room with a skeleton key and/or privacy bolt to lock. Learn about hardware >
Door Set Functions
Function
Description
Includes
Skeleton Key
Latch and skeleton key lock - The knobs turn and operate a latch. A skeleton key is used to lock and unlock the door. Typically found on vintage interior doors that can be locked and unlocked from either side.
2 Knobs
1 Rosette and 1 keyhole cover
1 Skeleton key rim lock
1 Matching rim keeper
Matching screws
1 Spindle and 2 keys
Product Videos
Reviews
Product Q & A
Adding Items to Cart...
Step 1 Choose Your Function
Passage
Complete non-locking latch set used on most interior doors
Privacy
Complete locking latch set for bedroom and bathroom doors
Double Dummy
Non-latching set with two handles for non-bored closet and double doors
Single Dummy
Non-latching handle for non-bored closet and pantry doors
Step 2 Choose Your Backset
The "backset" is the distance from the edge of your door to the center of the hole bored in your door. Choose from 2⅜" (standard) or 2¾". Measure carefully to ensure proper fit.
or
Choosing a Keying Option for Your Entry Door Set
Single Cylinder Lock:
Key operated from the outside, thumbturn operated from the inside.
Double Cylinder Lock:
Key operated from both inside and outside. Note: Key required for egress.
How to Determine Your Backset
The "backset" is the distance from the edge of your door to the center of the hole bored in your door. Choose from 2⅜" (standard) or 2¾". Measure carefully to ensure proper fit.
or
How to Determine Your Backset
The "backset" is the distance from the edge of your door to the center of the hole bored in your door. Choose from 2½" or 2¾". Measure carefully to ensure proper fit.
or
How to Determine Handing
Stand in the frame of the door with your back to the hinges. If the door swings to your right, it is a RIGHT HAND door. If the door swings to your left, it is a LEFT HAND door.
RIGHT HANDED (RH)
LEFT HANDED (LH)
How to Determine Handing
Stand in the frame of the door with your back to the hinges. If the door swings to your right, it is a RIGHT HAND door. If the door swings to your left, it is a LEFT HAND door.
Antique
Matte
