Versailles Style Mortise Handleset With Choice Of Interior Knob Or Lever

Select Your Finish:



Select Your Knobs - Handing:


Item #: RS-05EM-3309X
$844.90
Quantity discounts available
QuantityPrice

Description

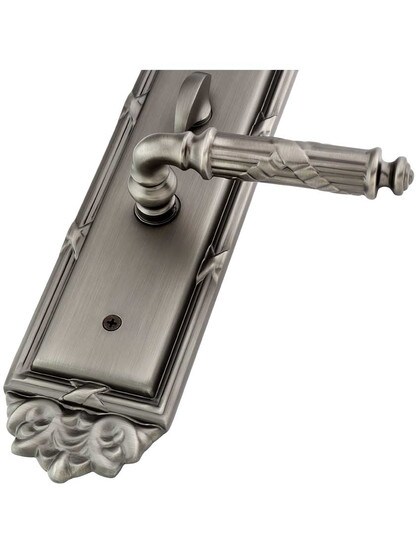

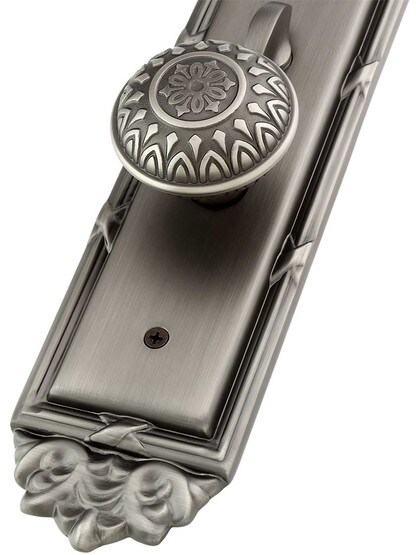

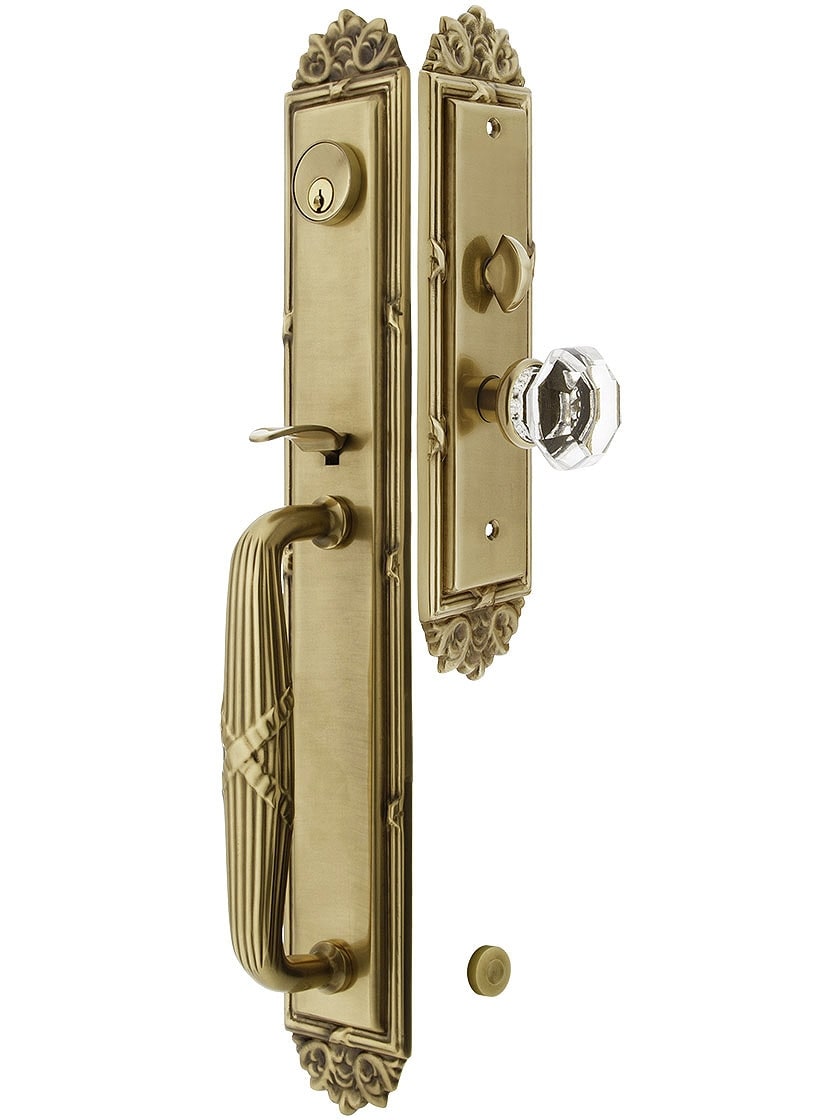

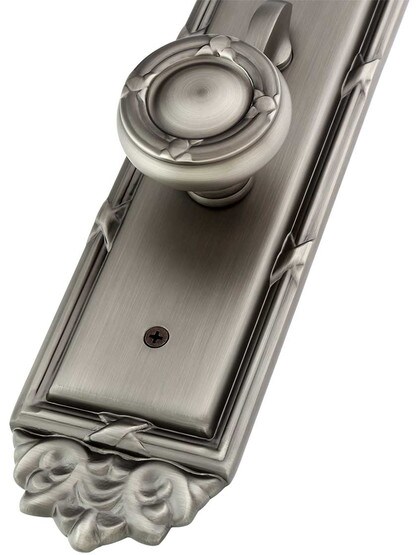

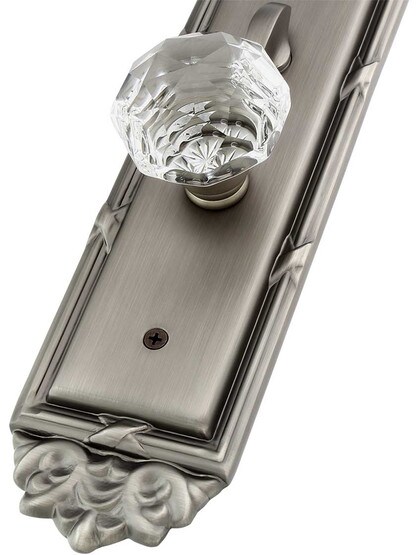

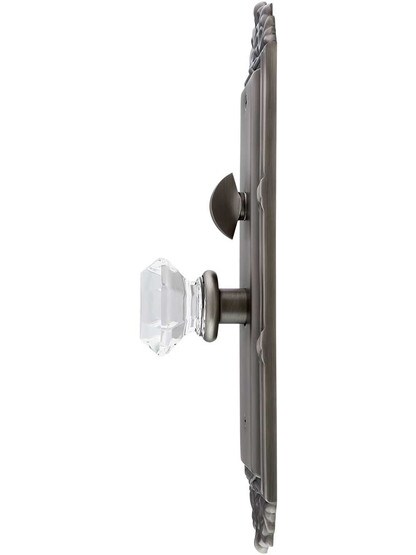

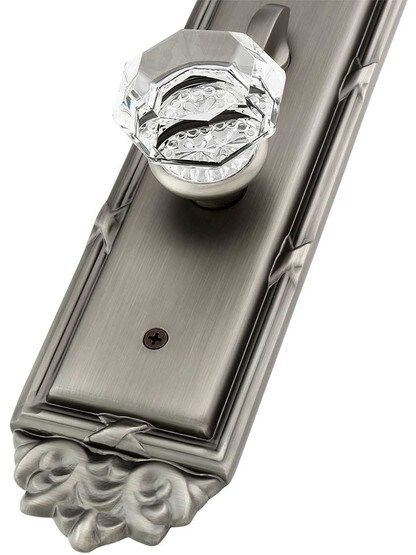

Elegant neoclassical styling with ribbon and reed motifs gives this Versailles thumb latch entrance set a timeless appeal. With six interior knobs or levers and four popular finishes to choose from, they'll work with any style of traditional decor. Choose from decorative levers and door knobs made of glittering lead crystal or solid brass - so many ways to express your unique style! These vintage-style doorsets are enhanced with high-tech mechanics, resulting in silky smooth, trouble-free operation unlike anything you've ever experienced. Made of forged solid brass this entry doorset will last for years to come.

Door set dimensions: Exterior handle backplate is 18" x 3". Interior backplate is 12 3/16" H x 3" W.

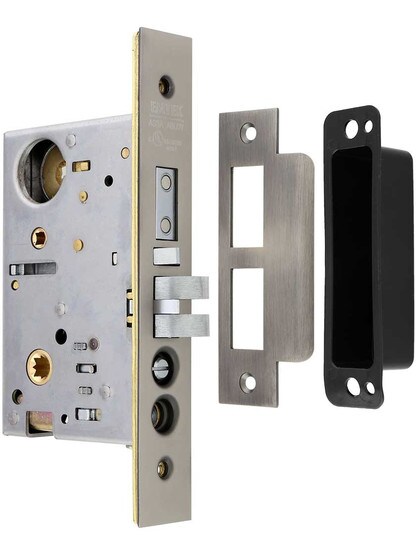

Mortise lock dimensions: Backset is 2 1/2". Lock case: 5 1/2" H x 3 1/4" W x 3/4" thick. Lock face plate: 8" H x 1 1/4" W. Strike plate: 4 7/8" H x 1 1/4" W. The lock includes a 1 1/2" cylinder and 2 standard keys.
Mortise lock box: ANSI F20 function with stop/release buttons.

This set is designed to fit standard exterior doors of 1 3/4" thickness that open inward. For reverse handed doors that open out, thicker doors, dummy sets, double cylinder option, or F13 function without stop/release buttons, please call for assistance.

This lock has egress and can cause lock outs if the stop button is not disengaged when exiting the door.

Door Sets

Door Set Functions
FunctionDescriptionIncludes
Entry
Latch and lock - The door is opened by a thumb latch on the exterior and by a knob/lever on the interior. The locking deadbolt is operated by a key from the outside and by a thumbturn on the inside.
  • 1 Grip handle with thumbpiece and backplate
  • 1 Knob/Lever
  • 1 Interior backplate/rosette
  • 1 Lock cylinder with matching backplate
  • 1 Thumbturn with matching backplate
  • 2 Keys
  • 1 Entry mortise lock
  • 1 Matching lock strike plate
  • Matching screws
  • All necessary mounting accessories

Installation

Installation Instructions

How to install this product in a typical situation.

Hardware Tip

Thumblatch: Usually refers to an entry door set which has a lever above the handle, which when depressed by the thumb, unlatches the door.

Specs

Product Specifications

Dimensions, specifications and detailed product info
