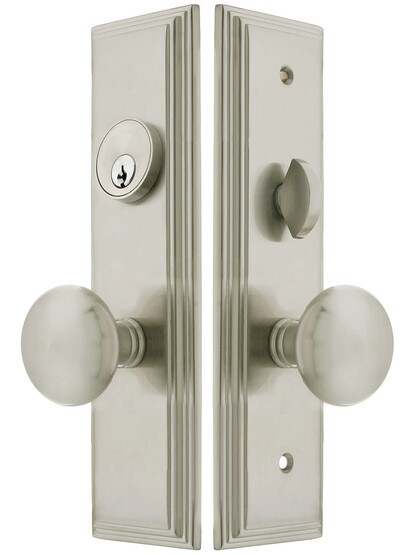

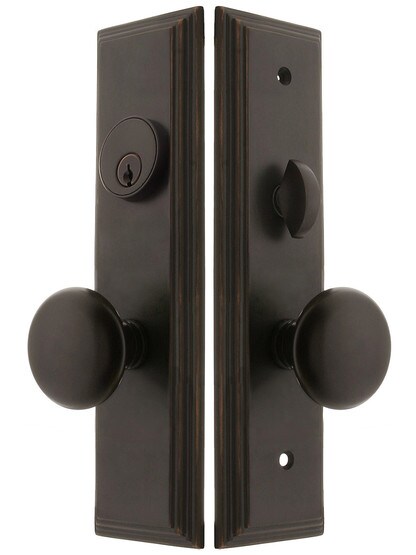

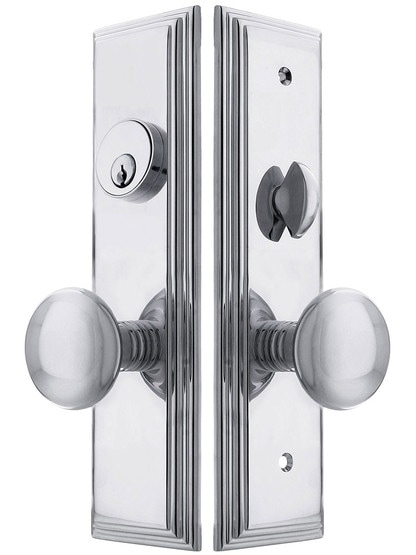

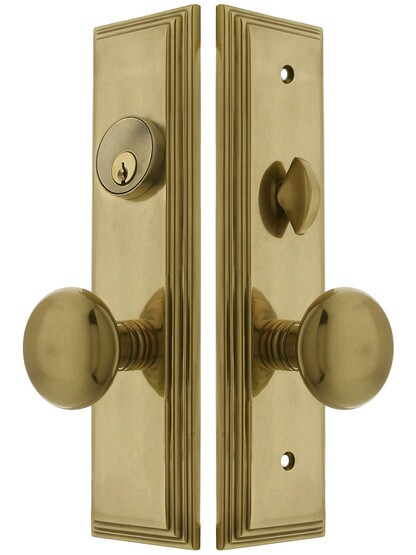

Manhattan Mortise Lock Entry Set with Providence Knobs
Description
Dress your door in modern style with our Manhattan entry set with round knobs. This Mid-Century meets Art Deco design is offered with 6 popular finishes and your choice of backsets with a heavy duty mortise lock! Made of forged solid brass this sturdy entryset will last for years to come.
Door set dimensions: Backplates measure 10" H x 2 3/4" W. Providence knobs are 2 1/4" in diameter.
Mortise lock dimensions: Backset: 2 1/2" or 2 3/4". Lock case: 5 1/2" H x 3 1/4" W x 3/4" thick. Lock face plate: 8" H x 1 1/4" W. Strike plate: 4 7/8" H x 1 1/4" W. The lock includes a 1 3/8" cylinder and 2 standard keys.
Mortise lock box: ANSI F20 function with stop/release buttons.
This set is designed to fit standard exterior doors of 1 3/4" thickness that open inward. For reverse handed doors that open out, thicker doors, dummy sets, double cylinder option, or F13 function without stop/release buttons, please call for assistance.
This lock has egress and can cause lock outs if the stop button is not disengaged when exiting the door.
Door set dimensions: Backplates measure 10" H x 2 3/4" W. Providence knobs are 2 1/4" in diameter.
Mortise lock dimensions: Backset: 2 1/2" or 2 3/4". Lock case: 5 1/2" H x 3 1/4" W x 3/4" thick. Lock face plate: 8" H x 1 1/4" W. Strike plate: 4 7/8" H x 1 1/4" W. The lock includes a 1 3/8" cylinder and 2 standard keys.
Mortise lock box: ANSI F20 function with stop/release buttons.
This set is designed to fit standard exterior doors of 1 3/4" thickness that open inward. For reverse handed doors that open out, thicker doors, dummy sets, double cylinder option, or F13 function without stop/release buttons, please call for assistance.
This lock has egress and can cause lock outs if the stop button is not disengaged when exiting the door.
Door Sets
| Door Set Functions | ||
| Function | Description | Includes |
Entry | Latch and lock - The door is opened by a knob/lever on the exterior and on the interior. The locking deadbolt is operated by a key from the outside and by a thumbturn on the inside. |
|
Included Hardware
Pictured in PVD. Your hardware will match the finish selected. Hardware not included with Dummy Sets.
Installation
Installation Instructions
How to install this product in a typical situation.
Hardware Tip
Entry Mortise Lock: A large mortise lock that is operated by knobs, levers or thumb latches and has either a modern keyed cylinder or a skeleton key operated deadbolt.
Specs
Product Specifications
Dimensions, specifications and detailed product info
WARNING: California Proposition 65Ratings & Reviews
1 review
Perfect replacement lock
Comments:
Looks great and accurate to the period of the house. Works perfectly and very substantial.
