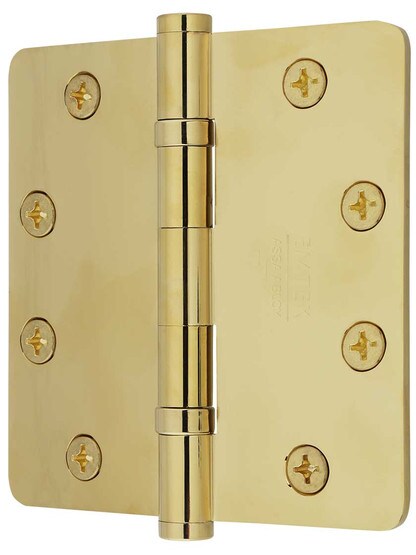

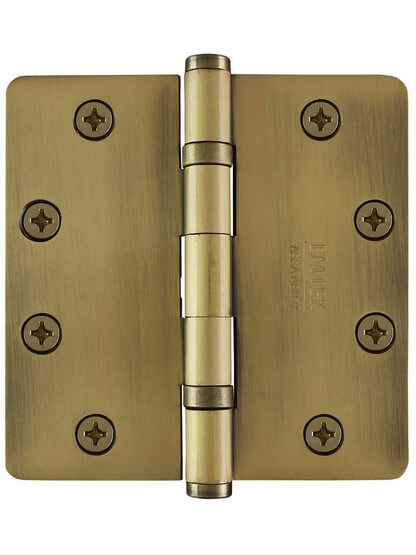

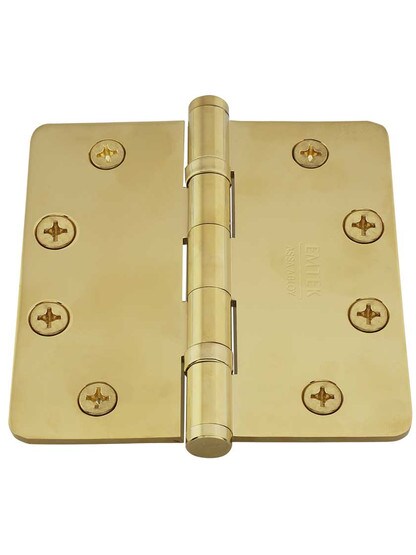

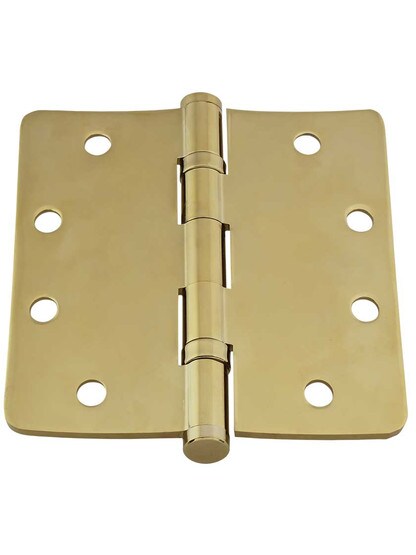

4 1/2" Solid Brass Ball-Bearing Door Hinge with Button Tips and 1/4" Radius Corners

Your Selection:

Select Your Finish:


$45.99
Quantity discounts available
QuantityPrice
Item #: R-04EM-96425X

Description

The simple and straight forward design of our 4 1/2-Inch Solid Brass Ball-Bearing Door Hinge with Button Tips and 1/4-inch Radius Corners is ideal for your mid-century modern or contemporary home. This heavy duty hinge is loaded with features found in more expensive models - two ball bearings for extra durability, removable stainless steel pins, and 1/8-inch thick extruded leaves for high strength. The 4 1/2-inch size hinge works for large or exterior thickness doors.

Dimensions: 4 1/2" H x 4 1/2" W leaves only, 4 13/16" H overall .
Leaf: 1 7/8". Leaf thickness: 1/8".
Barrel diameter: 1/2".

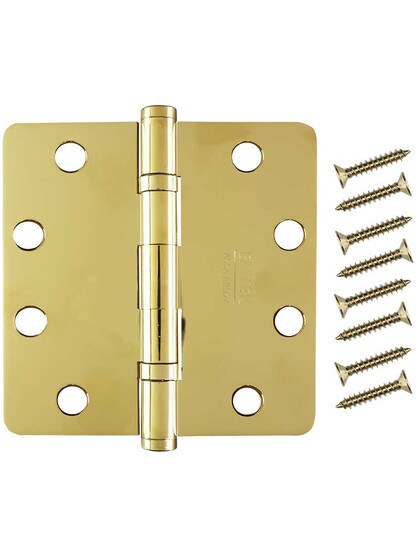

Fasteners: M5 x 1 1/4" wood screws.

Hardware Tip

These hinges are mounted just like a butt hinge and are mortised into the edge of the door and the door frame.
