Lugano Mortise Entry Set with Choice of Interior Knob or Lever

Your Selection:

Select Your Finish:



Select Your Knobs - Handing:


$970.90 Sold Out
Quantity discounts available
QuantityPrice
Item #: RS-05EM-3348X

Description

Give your door a contemporary look with the Lugano Mortise Thumblatch Entry Set. This sturdy design is made of forged-brass, and features enhanced, high-tech mechanics that promote silky smooth, trouble-free operation. Choose from decorative knobs or levers made of glittering crystal glass or solid brass - so many ways to express your unique style!

Doorset dimensions:

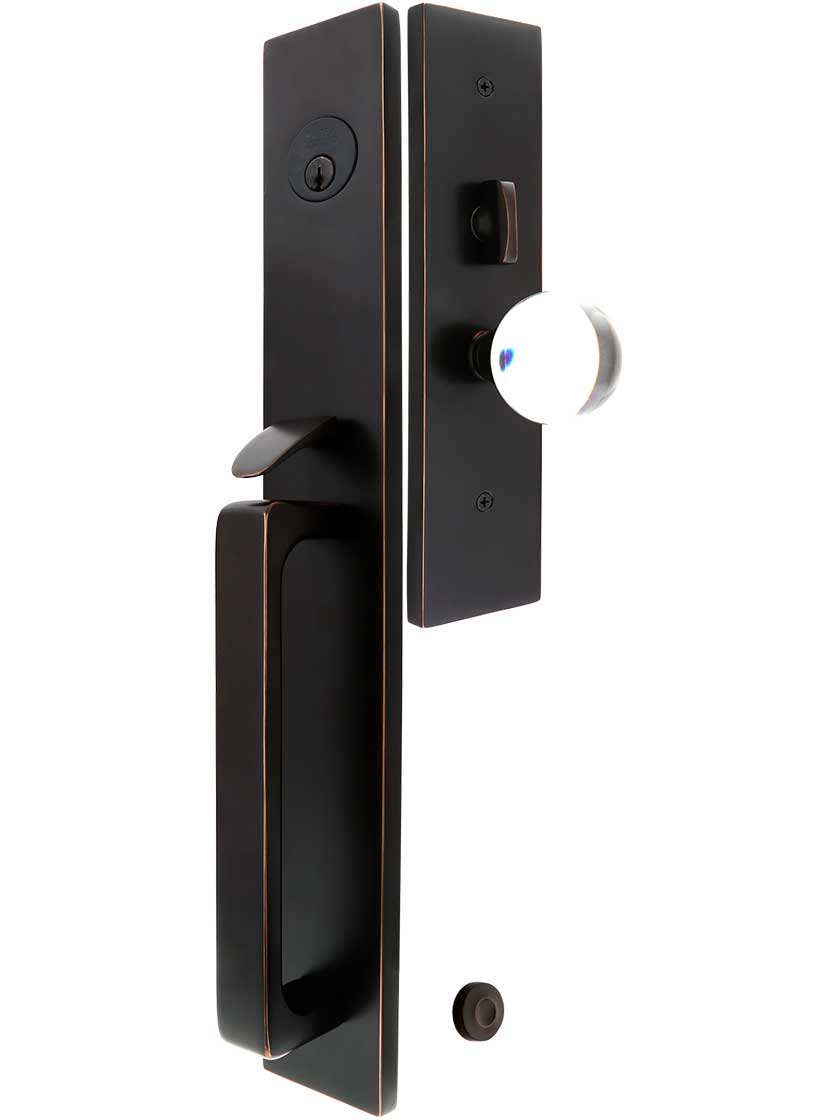

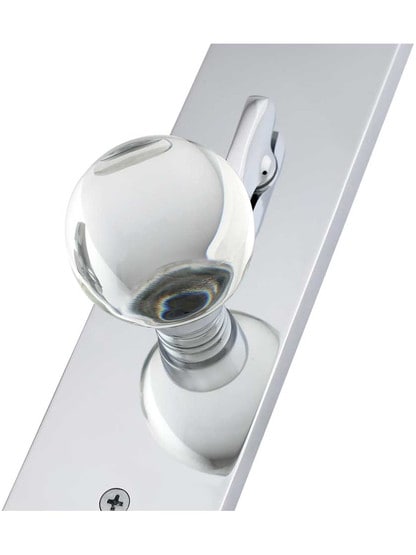

Bristol knob: 2 3/32"W

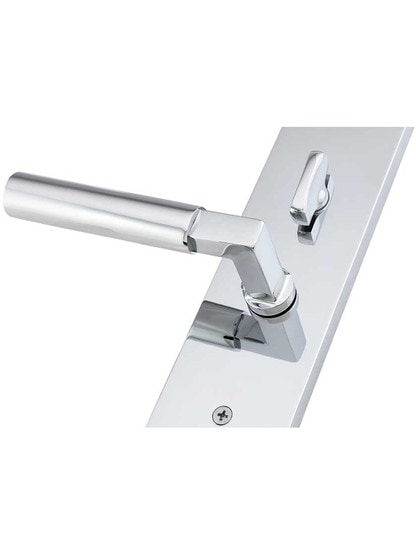

Hercules lever: 5" L

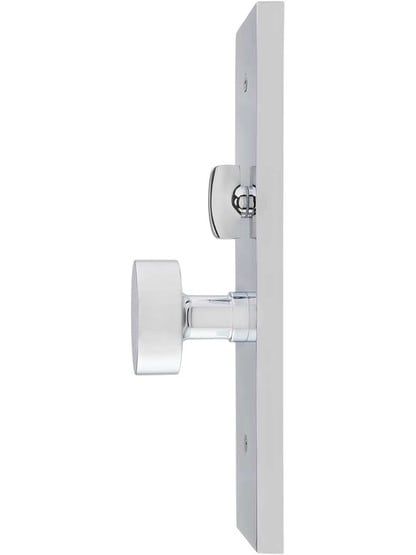

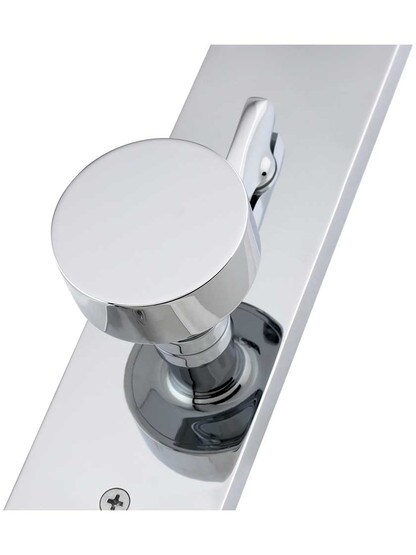

Round knob: 2 1/4" D
Exterior: 18" H x 2 1/2" W x 2 1/2" Projection
Interior: 10 1/4" H x 2 1/2" W
Interior projection depends on knob/lever style.
Plate thickness: 1/2"

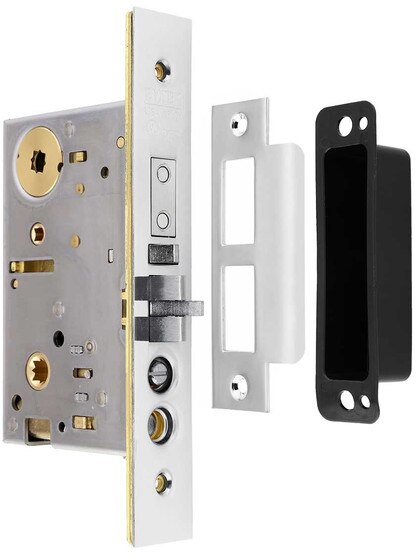

Mortise lock dimensions:
Backset: 2 1/2"
Lock case: 5 1/2" H x 3 1/4" W x 3/4" thickLock face plate: 8" H x 1 1/4" W
Strike plate: 4 7/8" H x 1 1/4" W.
The lock includes a 1 1/2" cylinder and 2 standard keys.
Mortise lock box: ANSI F20 function with stop/release buttons.

This set is designed to fit standard exterior doors of 1 3/4" thickness that open inward. For reverse handed doors that open out, thicker doors, dummy sets, double cylinder option, or F13 function without stop/release buttons, please call for assistance.

This lock has egress and can cause lock outs if the stop button is not disengaged when exiting the door.

Door Sets

Door Set Functions
FunctionDescriptionIncludes
Entry
Latch and lock - The door is opened by a knob/lever on the exterior and on the interior. The locking deadbolt is operated by a key from the outside and by a thumbturn on the inside.
  • 2 Knobs/levers
  • 2 Back plates/rosettes
  • 1 Lock cylinder with matching backplate
  • 1 Thumbturn with matching backplate
  • 2 Keys
  • 1 Entry mortise lock
  • 1 Matching lock strike plate
  • Matching screws
  • All necessary mounting accessories

Included Hardware

Pictured in Polished Chrome. Your hardware will match the finish selected.

Installation

Installation Instructions

How to install this product in a typical situation.

Hardware Tip

Entry Mortise Lock: A large mortise lock that is operated by knobs, levers or thumb latches and has either a modern keyed cylinder or a skeleton key operated deadbolt.

Specs

Product Specifications

Dimensions, specifications and detailed product info
