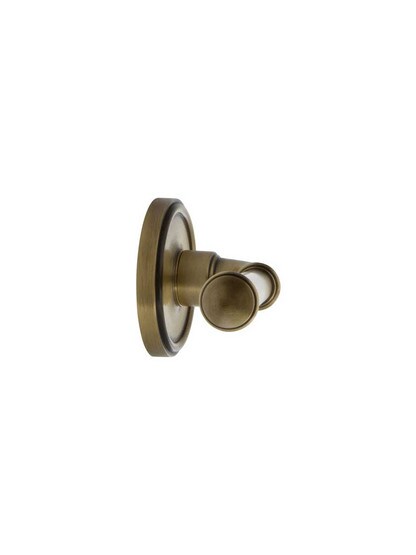

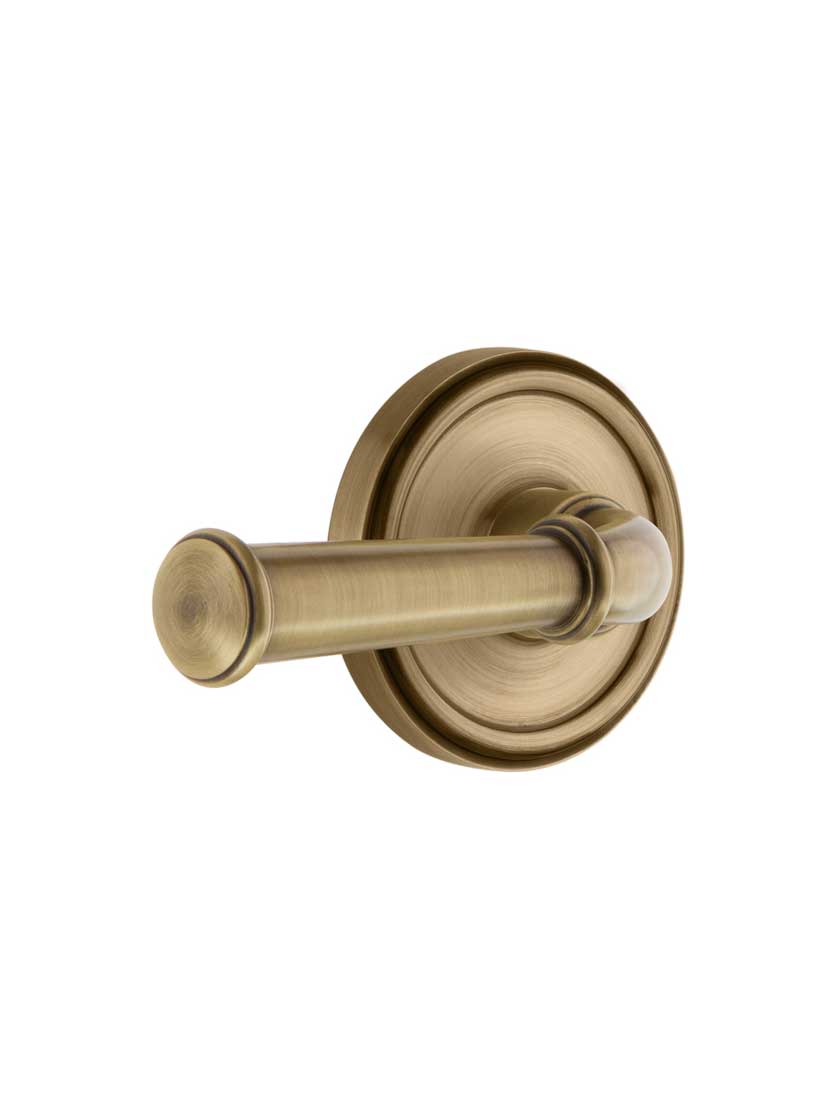

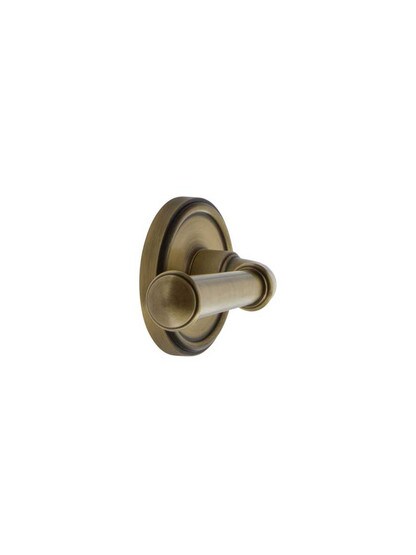

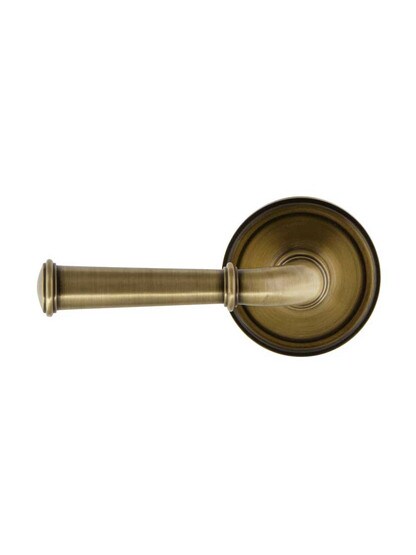

Grandeur Georgetown Rosette Door Set with Georgetown Levers
Description
"Refined simplicity" defines the timeless style and charm of Grandeur's Georgetown Rosette Door Set with Georgetown Levers. Constructed of solid forged brass, this clean, crisp design is exhibited in refined detail, while smooth, yet sturdy mechanics offer silk-like operation. Easy and quick installation makes restoration or new construction efficient and exact.
Door set dimensions: georgetown levers measure 3/4" H x 4 3/4" W. Projection: 2 5/8". Rosettes are 2 5/8" D.
Latch dimensions: Latch case: 7/8" diameter. Latch face plate: 2 1/4" H x 1" W. Standard door range: 1 3/8" to 1 3/4" thick. A "thick door kit" for doors up to 2 1/4" in thickness is available for a small fee.
Door set dimensions: georgetown levers measure 3/4" H x 4 3/4" W. Projection: 2 5/8". Rosettes are 2 5/8" D.
Latch dimensions: Latch case: 7/8" diameter. Latch face plate: 2 1/4" H x 1" W. Standard door range: 1 3/8" to 1 3/4" thick. A "thick door kit" for doors up to 2 1/4" in thickness is available for a small fee.
Door Sets
| Door Set Functions | ||
| Function | Description | Includes |
Passage | Latch but no lock - The levers turn and operate a latch but there is no locking ability. Typically found on interior doors that don't need to lock, or doors with a separate deadbolt. |
|
Privacy | Latch and lock - This set has a privacy pin next to the knob which is pushed to lock and pulled to unlock. The door can also be unlocked from the outside by pushing a small screwdriver through the emergency release hole. Typically found on bedroom or bathroom doors. |
|
Double Dummy | No latch or lock - the levers on this doorset don't turn or operate a latch. Typically found on closet doors or the passive door in a set of double doors. This set can't be installed on a pre-drilled door. |
|
Single Dummy | No latch or lock - Like a cabinet knob, the lever mounts on one side of the door and doesn't turn or operate a latch. Typically found on closet or pantry doors. This set can't be installed on a pre-drilled door. |
|
Included Hardware
Pictured in Polished Brass. Your hardware will match the finish selected. Hardware not included with Dummy Sets.
Installation
Installation Instructions
How to install this product in a typical situation.
Hardware Tip
Tubular Latch: A cylindrical door latch that is installed into the edge of the door and is operated by a knob or lever via the spindle. These are typically used for modern pre-bored doors.
