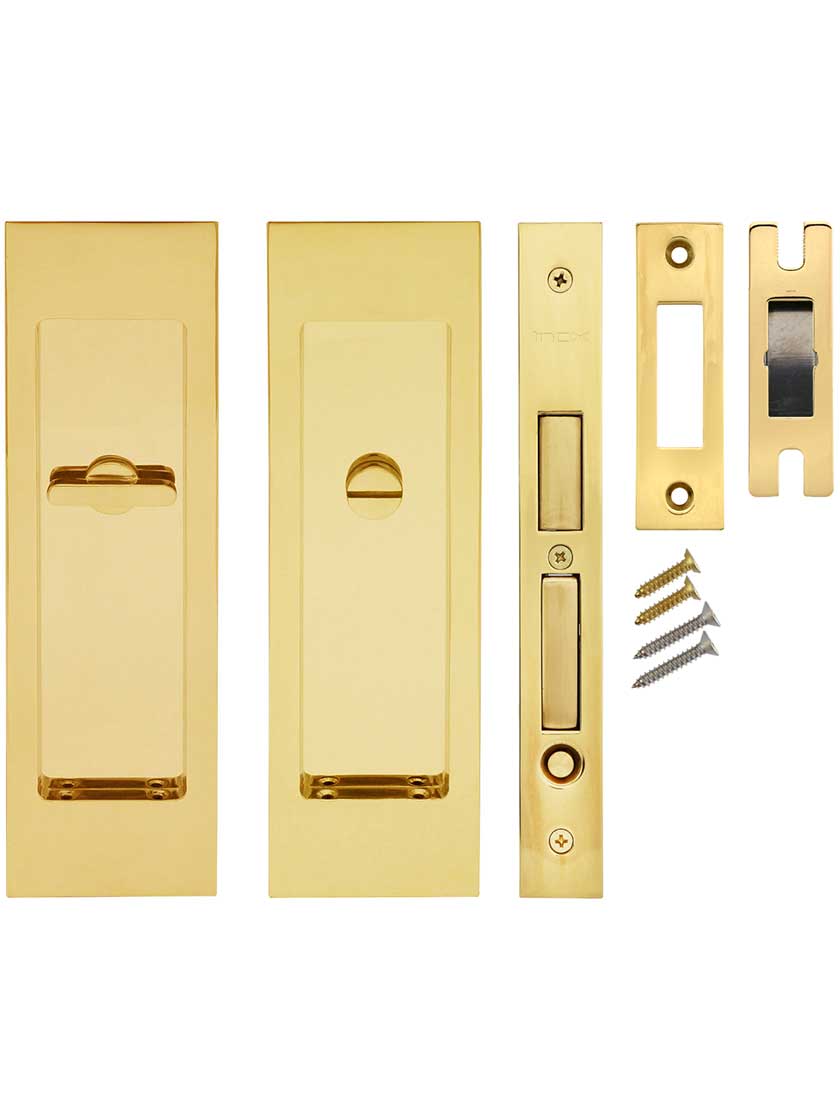

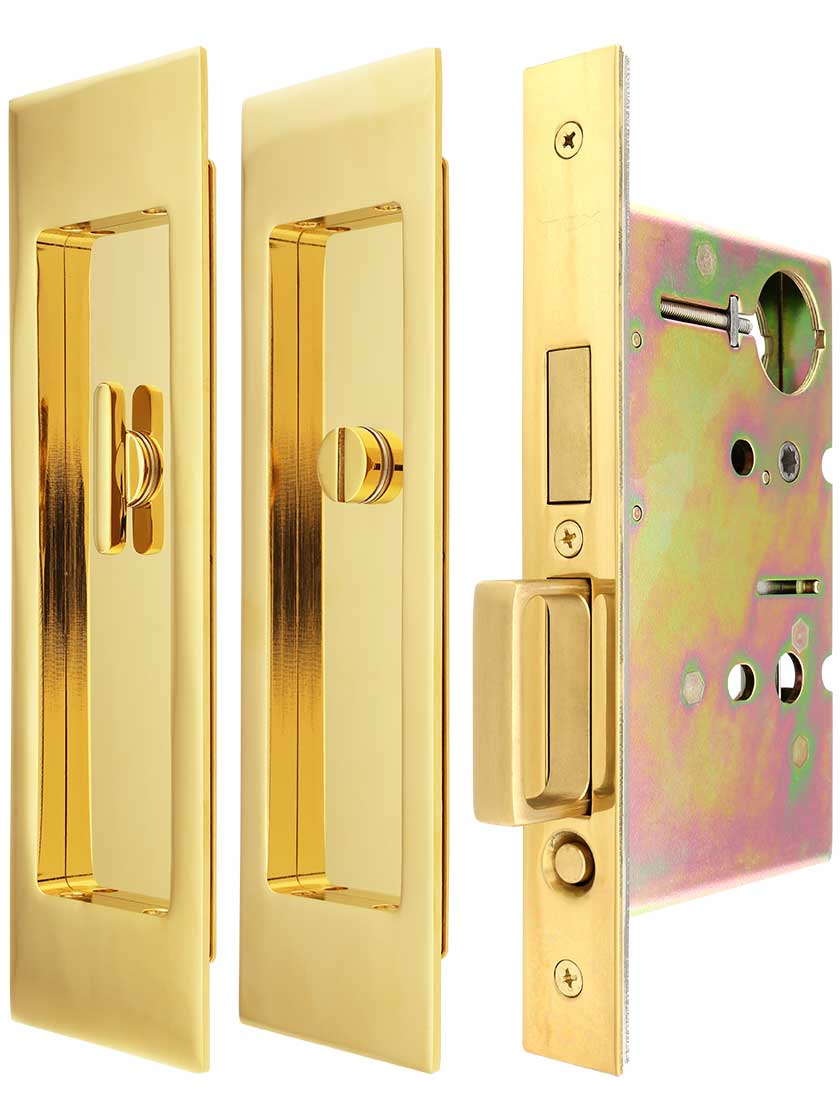

Understated yet well define, our Premium Privacy Pocket-Door Mortise Lock Set is an excellent choice for a variety of interiors. Beautifully designed and crafted, it features a convenient spring-loaded ring pull for quiet, smooth operation. The depth-adjustable strike makes it easier to install, while self-retractable wing hooks on the latch prevent scratches to the opposite surface. For a complete double pocket door set, combine this locking set with our matching dummy mortise set. Choose from a wide assortment of lustrous finishes.
The lock is activated from the inside by the bow-shaped thumb turn. The latch bolt is held in place by the included strike or dummy mortise case (for double doors - purchase separately). An emergency release button on the exterior allows the door to be unlocked with a common screwdriver. To release the integrated edge pull, simply push the button above the pull.
Dimensions: 7 7/8" H x 2 23/64" W x 5/64" thick. Recess: 6 23/64" H x 1 31/32" W. Mortise: 23/64" deep. Lock case: 3 21/32" D x 6" H x 11/16" W. Faceplate: 8" H x 1" W. Backset: 2 3/4". The screw holes for attaching are concealed on the sides of the recess.
