Features
  • Solid Brass or Stainless Steel Construction
  • Available in 8 Finishes
  • Reversible for Left or Right Handing
  • Heavy Duty Steel Lock Case With Built In Edge Pull
Details
Style Colonial / Classical / Romantic
Item Sold As Complete Set for One Door
Included Hardware Matching Phillips Head Screws
Usually Ships In 3 to 5 Business Days More info >
Warranty 5 Year Warranty
Read Product Questions & Answers


Quantity:




Description & Dimensions

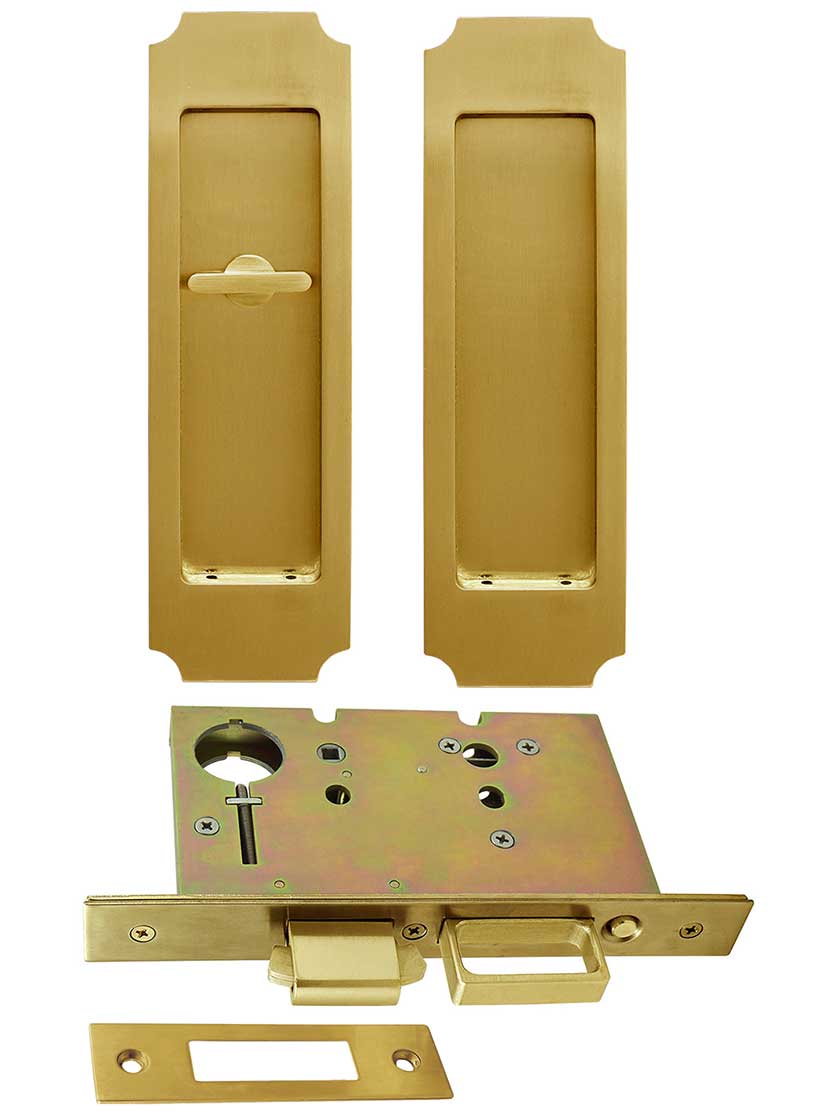

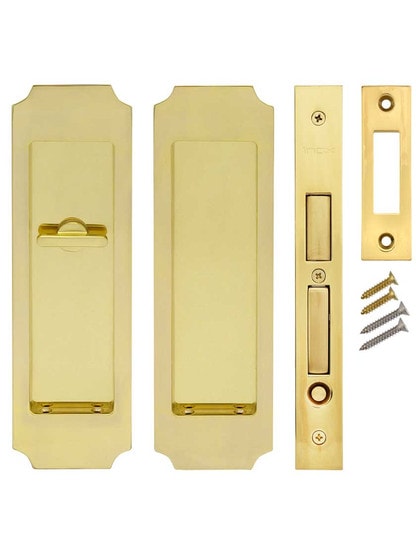

"Refined simplicity" defines the timeless style and charm of our Premium Patio Pocket-Door Mortise Lock Set with Chamfered Corner Pulls. Beautifully designed and crafted, it features a convenient spring-loaded edge pull for quiet, smooth operation. The depth-adjustable strike makes it easier to install, while self-retractable wing hooks on the latch prevent scratches to the opposite surface. For a complete double pocket door set, combine this locking set with our matching dummy set. Choose from a wide assortment of lustrous finishes.

The lock is activated from the inside by the bow-shaped thumb turn. The latch bolt is held in place by the included strike or dummy mortise case (for double doors - purchase separately).

Dimensions: Pulls - Outer: 7 7/8" H x 2 23/64" W (200mm x 60mm). Recess: 6 23/64" H x 1 31/32" W. Mortise Depth: 23/64" (9mm). Surface plate: 5/64" (2mm) thickness.
Backset: 2 3/4". Standard Door Thickness: 1 3/4". Thick door kits available, call for details. Lock Case: 6" H x 3 21/32" W x 11/16" Thick (152 x 93 x 17mm). Faceplate: 8" H x 1" W x 3/32" (2mm) Thick. Vertically Adjustable Strike: 3 1/2" H x 1" W x 1 3/32" depth.



Hardware Tip:
A patio pocket door set locks on the inside but does not have an emergency release on the outside. Good for exterior or other pocket & sliding doors where access from the outside is not desired. Learn about hardware >
