Antique Steel Antique
Matte Black Matte
  • Sturdy Wrought Steel
  • Available in 2 Finishes
  • Heavy Duty Spring Assisted Levers
  • Easy Installation Designed for Modern Pre-drilled Doors
  • Available In Passage, Privacy and Dummy Functions
Style Colonial / Romantic
Item Sold As Complete Set for One Door
Included Hardware All necessary mounting accessories
Usually Ships In 3 to 5 Business Days More info >
Warranty Lifetime Mechanical & 5 Year Finish
Read Product Questions & Answers


Description & Dimensions

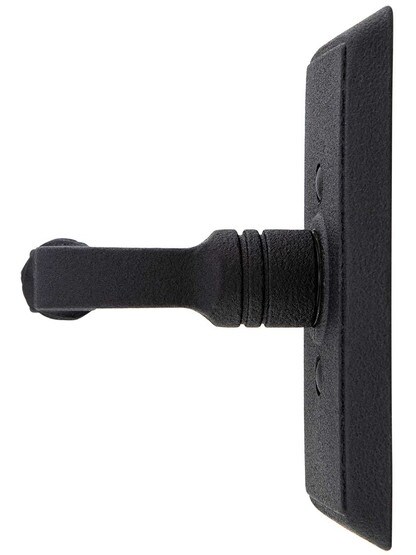

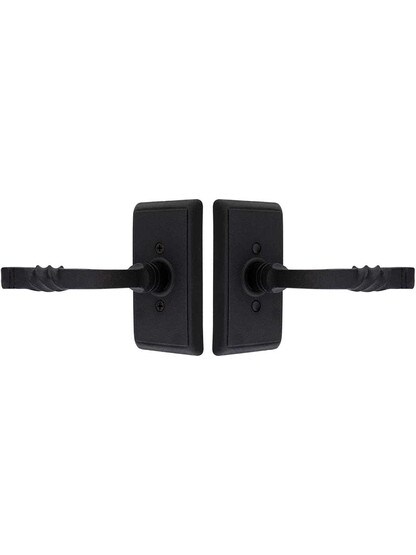

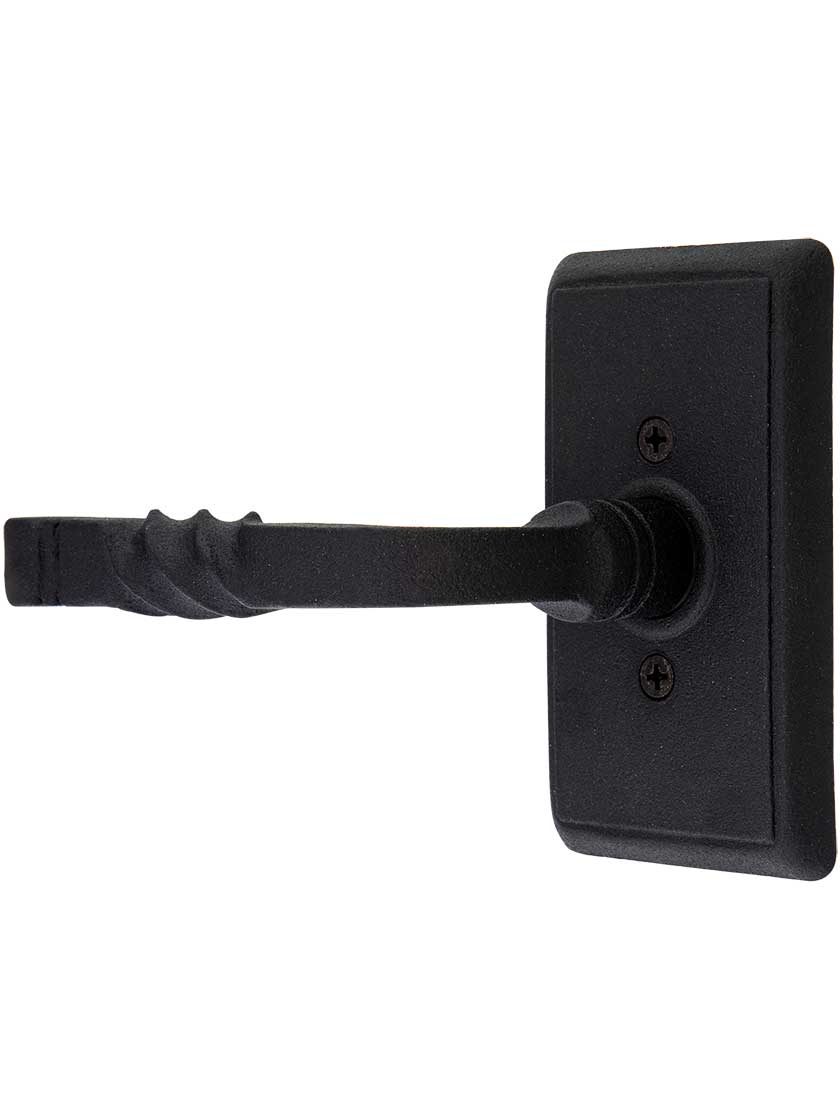

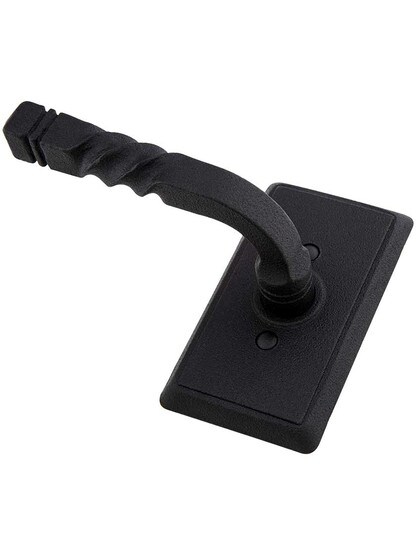

The twisted levers and rugged texture of this rustic door set proclaim its Spanish Colonial heritage. The wrought steel handles and rosettes are hot forged, distressed and relieved to achieve an appearance of graceful wear. With two tough finishes to choose from - matte black iron and weathered steel - you can tailor this set to match the character of each room in your house. Equipped with heavy-duty spring assisted mechanics, this unique set will give you a lifetime of quality performance.

Door set dimensions: San Carlos levers are 5" L. Rectangular rosettes measure 4 3/8" H x 2 5/8" W.

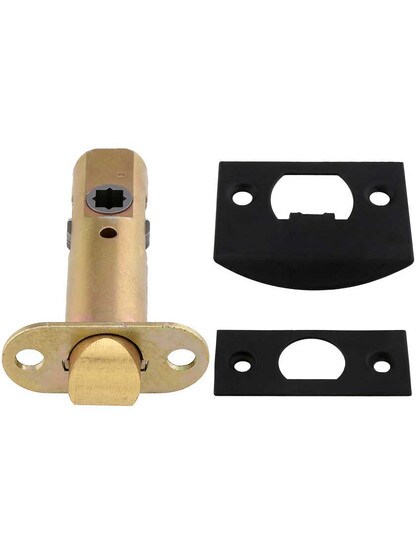

Latch dimensions: Latch case: 7/8" diameter. Latch face plate: 2 1/4" H x 1" W.

Handing is required for rosette lever sets. Learn about lever handing

Passage and Privacy have a backset of 2 3/8" or 2 3/4".Learn how to determine the backset

Hardware Tip:
Tubular Latch: A cylindrical door latch that is installed into the edge of the door and is operated by a knob or lever via the spindle. Learn about hardware >
Door Set Functions
Function Description Includes
Double Dummy
Double Dummy
No latch or lock - the levers on this doorset don't turn or operate a latch. Typically found on closet doors or the passive door in a set of double doors. This set can't be installed on a pre-drilled door.
  • 2 Levers
  • 2 Rosettes
  • Matching Screws
  • All necessary mounting accessories
Passage Function
Latch but no lock - The levers turn and operate a latch but there is no locking ability. Typically found on interior doors that don't need to lock, or doors with a separate deadbolt.
  • 2 Levers
  • 2 Rosettes
  • 1 Passage Latch with matching face plate
  • 1 Matching strike plate
  • Matching screws
  • All necessary mounting accessories
Privacy Function
Latch and lock - This set has a privacy pin next to the knob which is pushed to lock and pulled to unlock. The door can also be unlocked from the outside by pushing a small screwdriver through the emergency release hole. Typically found on bedroom or bathroom doors.
  • 2 Levers
  • 2 Rosettes
  • 1 Privacy Latch with matching face plate and privacy pin
  • 1 Matching strike plate
  • Matching screws
  • All necessary mounting accessories
