Features
  • Solid Steel Construction
  • Available in 8 Finishes
  • Adjustable Spring Tension
  • This Item is UL Listed
Details
Style Mid-Century
Item Sold As Single Hinge
Included Hardware 6 Matching Phillips Head Screws
Usually Ships In 1 to 2 Business Days More info >
Warranty 5 Year Warranty
Read Product Questions & Answers


Quantity:




Description & Dimensions

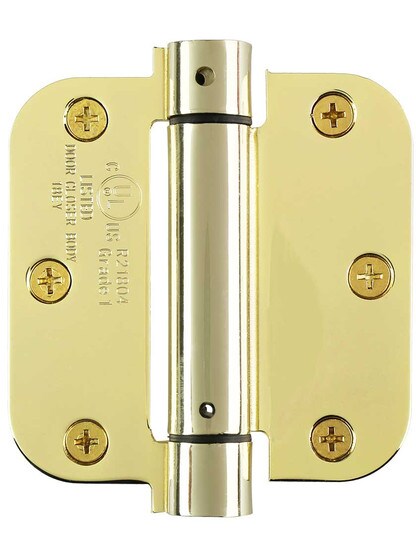

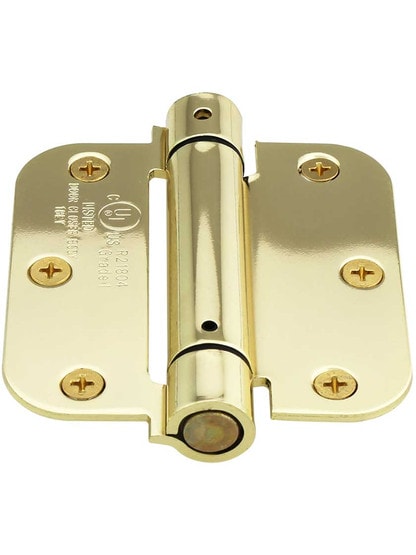

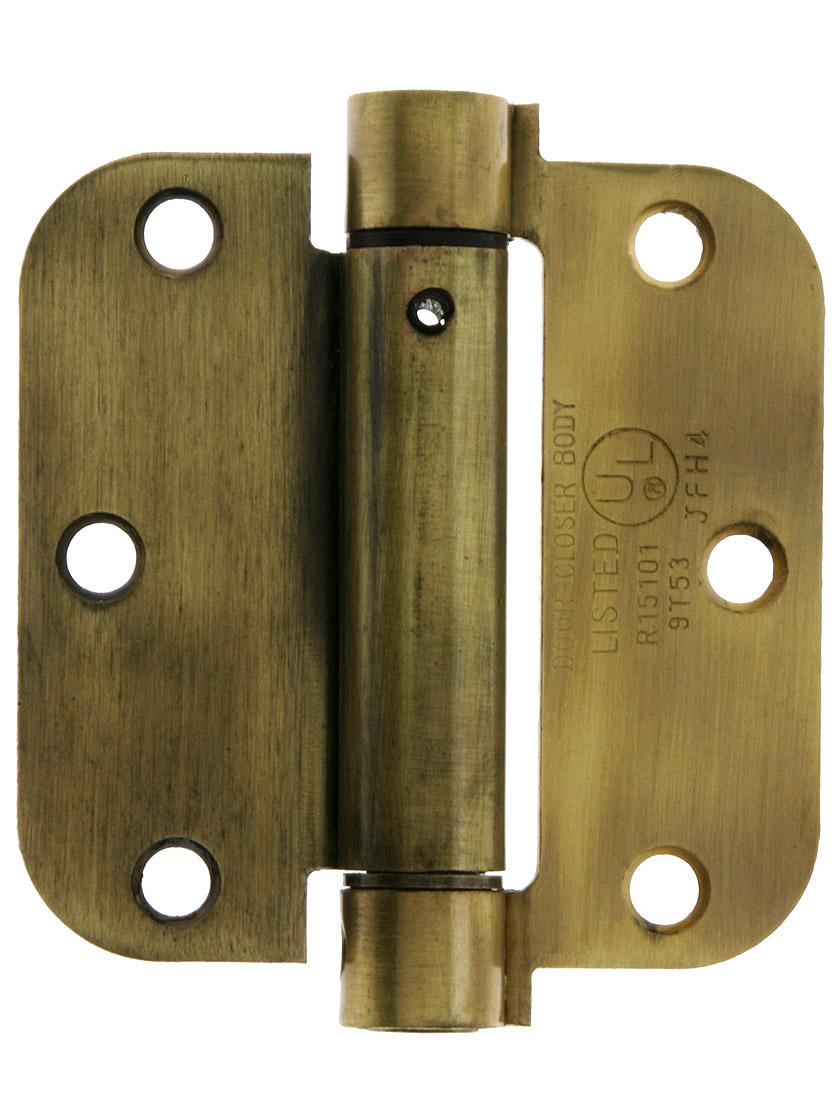

Spring butt hinges are typically used on interior garage doors or anywhere a self-closing door is required. This 3 1/2" hinge is UL listed for use on 60 minute fire doors, as required by building codes in many areas (when used on a fire door a minimum of 2 spring hinges are required). It is suitable for right or left hand installation and features easily adjusted spring tension. Made of heavy duty steel (.11" thick) with your choice of 8 attractive finishes.

The maximum recommended door weights are as follows: using 1 spring hinge and 2 butt hinges - 50 lbs.; using 2 spring hinges and 1 butt hinge - 70 lbs.; using 3 spring hinges - 90 lbs.

Dimensions: 3 1/2" H x 3 1/2" W x .11" thick. The leaves have a 5/8" radius corner.



Hardware Tip:
These hinges are mounted just like a butt hinge and are mortised into the edge of the door and the door frame. Learn about hardware >
