Features
  • Forged Steel Construction
  • Hinges are Lift Off for Easy Installation and Removal
  • Galvanized to Resist Rust
  • Complete Set for One Shutter
  • Powder Coated to Resist Rust
Details
Style Colonial / Art Deco / Mid-Century

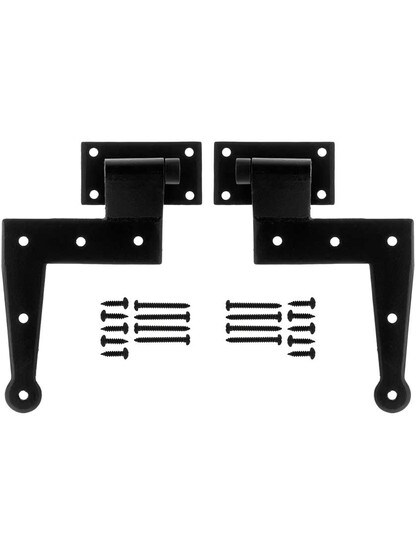

Item Sold As Set of 2 Hinges and 2 Pintles
Included Hardware Matching Phillips Head Screws
Usually Ships In 1 to 2 Business Days More info >
Warranty 5 Year Warranty
Read Product Questions & Answers

Quantity:




Description & Dimensions

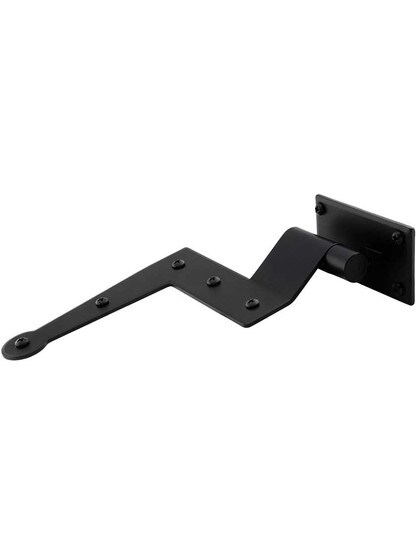

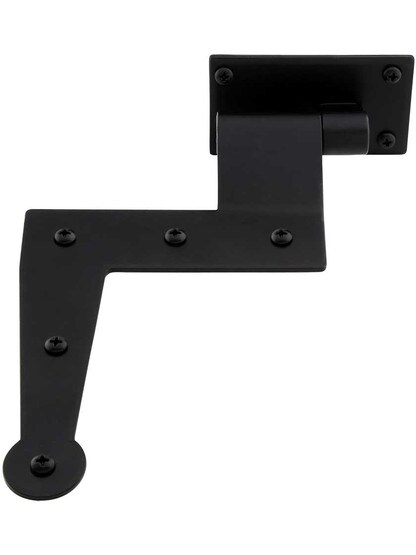

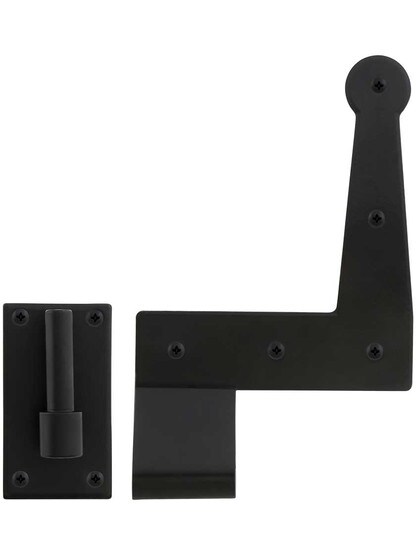

Pair of forged steel L type Bahama shutter hinges. These Bahama or Bermuda shutter hinges are powder coated black and are offset mounted. The pintles have a 1" offset and the hinges are offset by 1/2". The strap measures 6" tall by 5" wide and are 1/8" thick. The pintle mounting plate measures 2" tall by 3 3/4" wide and 3/16" thick. The pintle rod is just under 1/2" in diameter. Includes stainless steel screws which are black zinc plated to match hardware.

Technical Info with Diagram



Hardware Tip:
Bahama shutters, also known as Bermuda shutters, are exterior shutters with louvers that are hinged at the top and are opened to let in air but still block sunlight. Learn about hardware >
