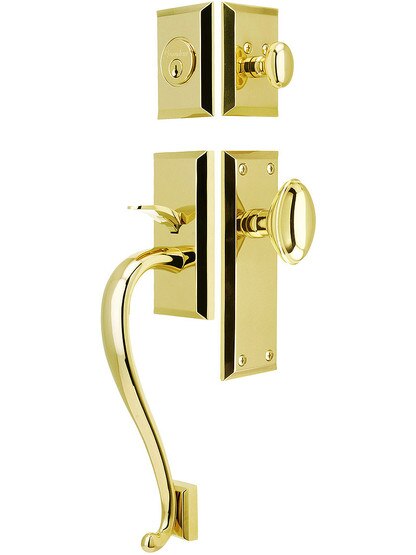

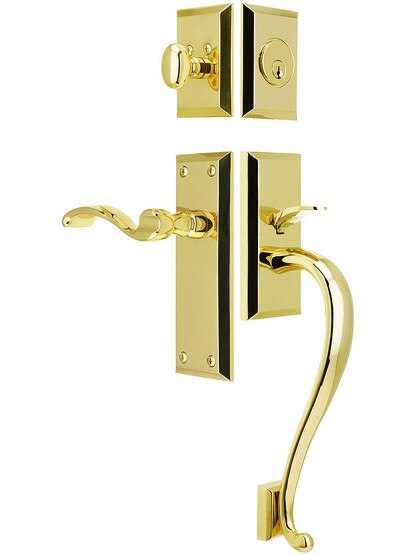

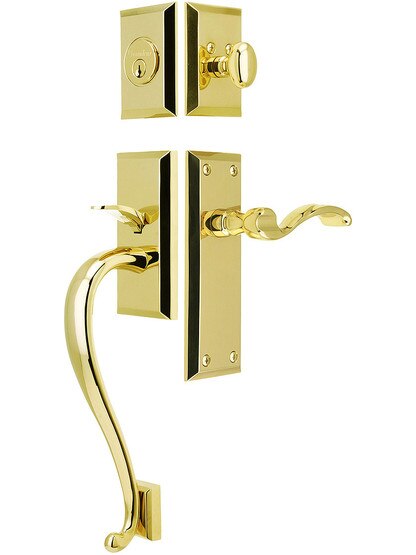

PVD PVD
Finish

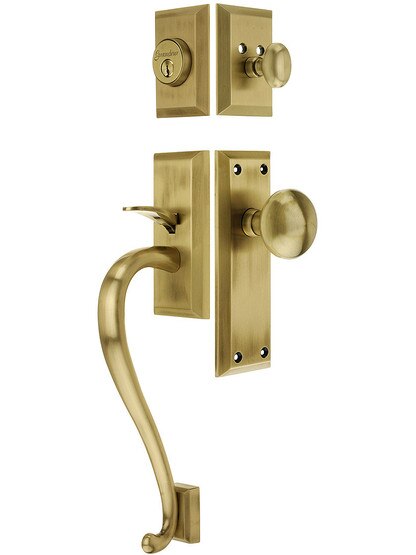

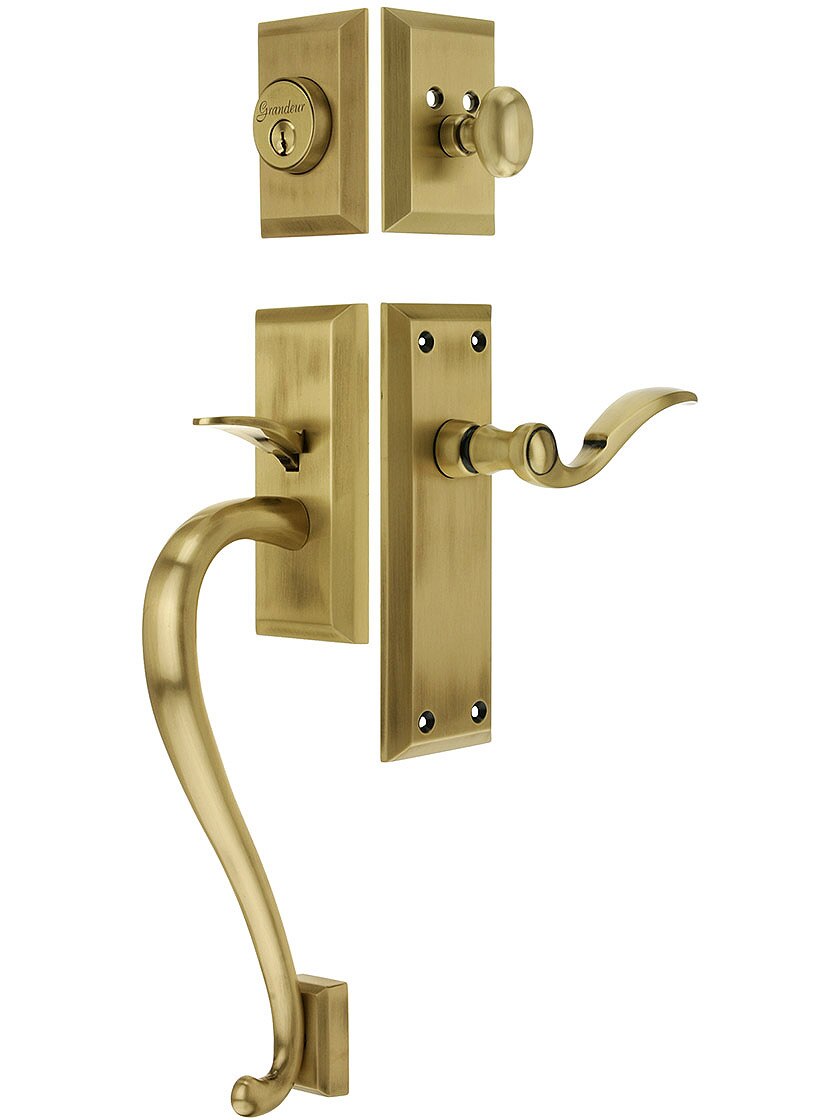

Antique Brass Antique
Brass
Timeless Bronze Timeless
Bronze

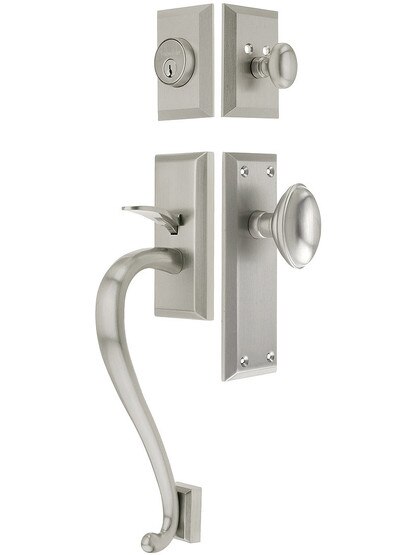

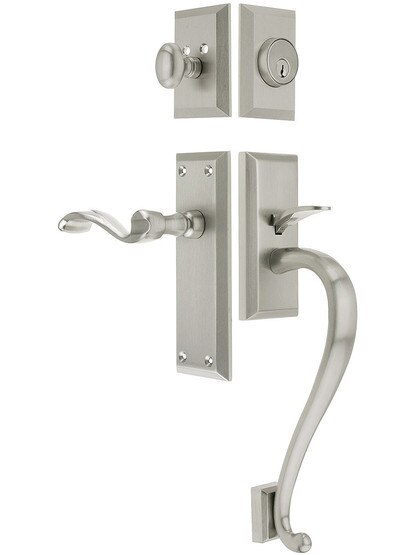

Satin Nickel Satin
Nickel

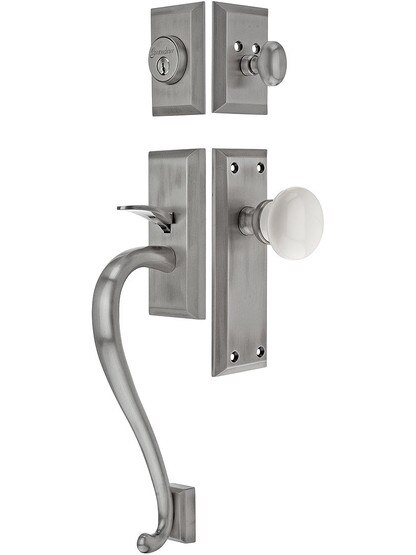

Antique Pewter Antique
Pewter
VIDEO ZOOM LARGE/ALTERNATE VIEWS
This item is part of...
Features
  • Premium Brass Forging for Exceptional Detail
  • Elegant Design for Luxurious Style
  • Pre-Attached Knobs & Levers Offer Easy Installation
  • Precision Spring Assist Provides Smooth Operation
  • Lifetime Mechanical and 10-Year Finish Warranty
Details
Style Colonial / Arts & Crafts
Item Sold As Complete Set for One Door
Included Hardware All necessary mounting accessories
Usually Ships In 3 to 5 Business Days More info >
Warranty Lifetime Mechanical & 10 Year Finish
Read Product Questions & Answers




Quantity:




Description & Dimensions

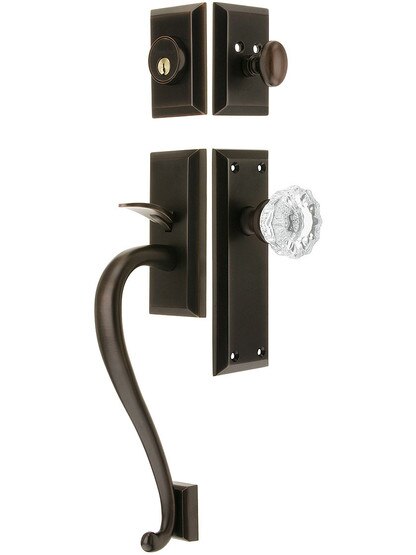

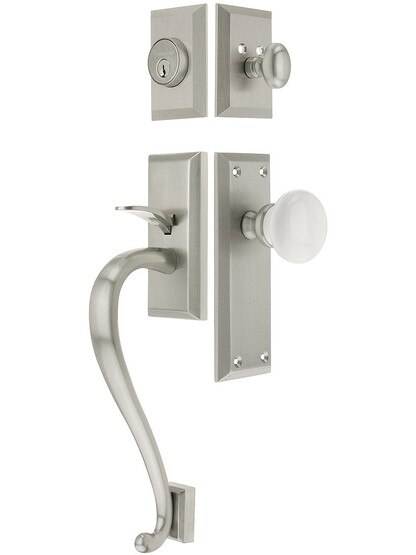

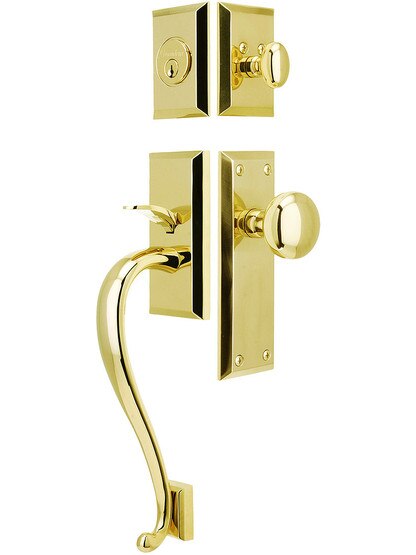

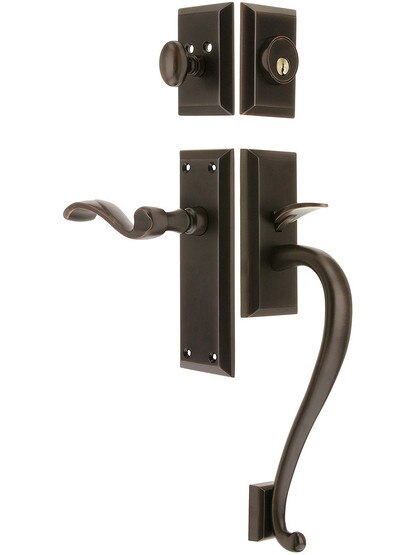

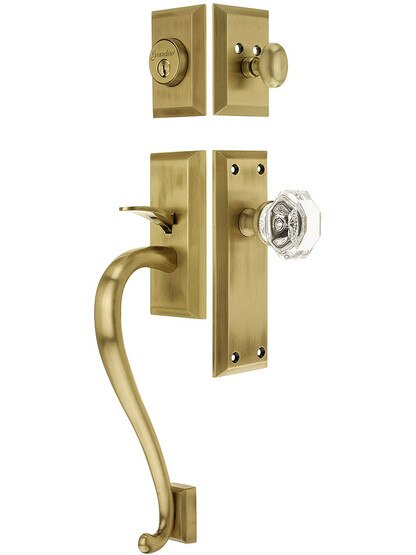

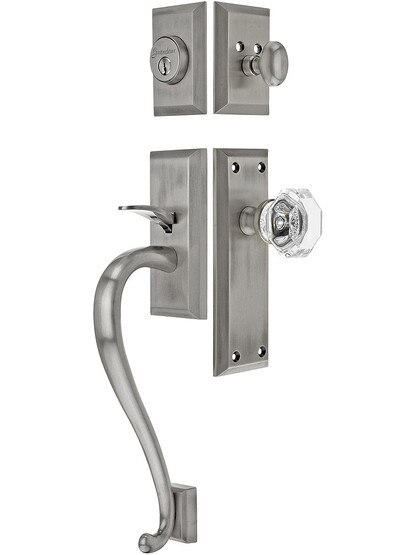

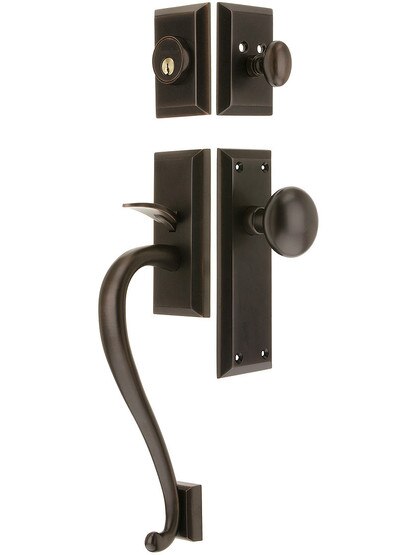

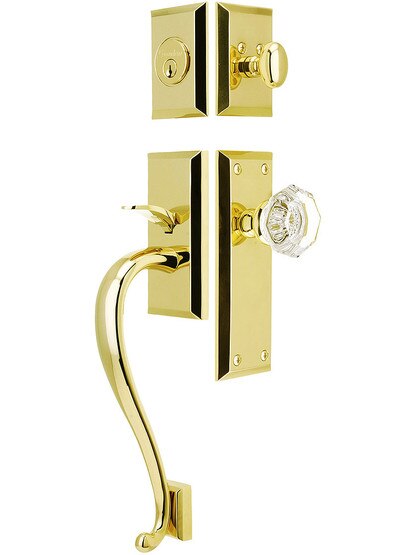

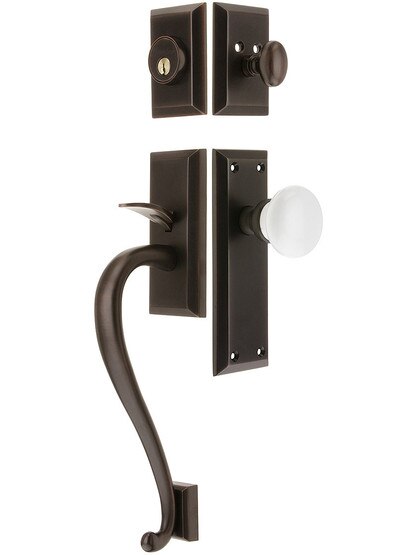

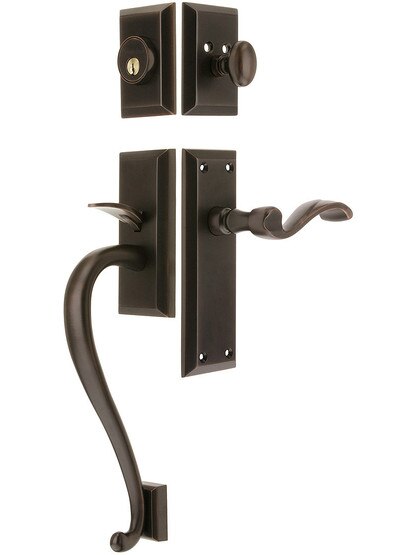

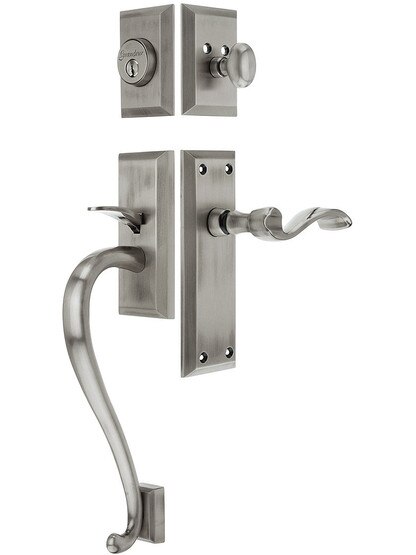

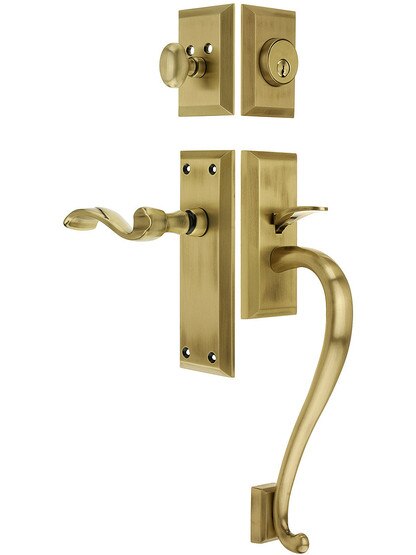

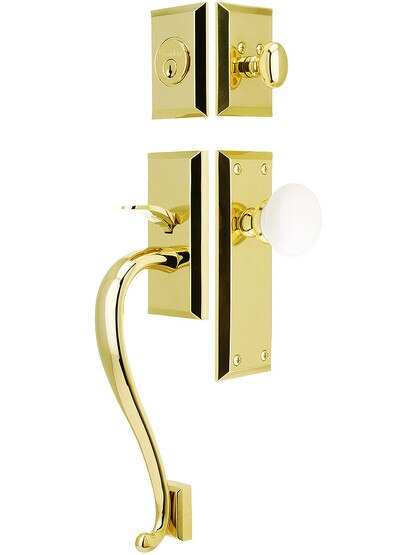

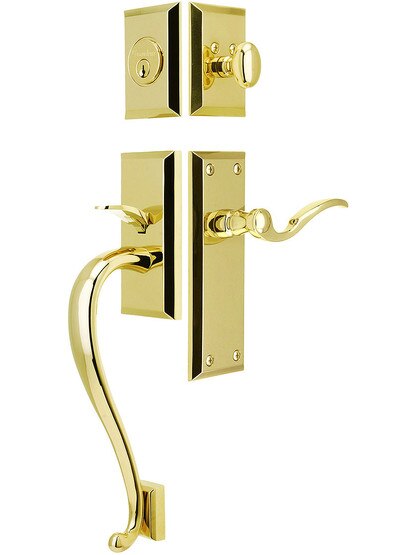

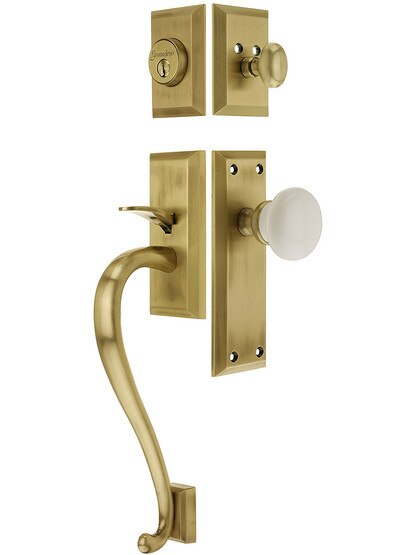

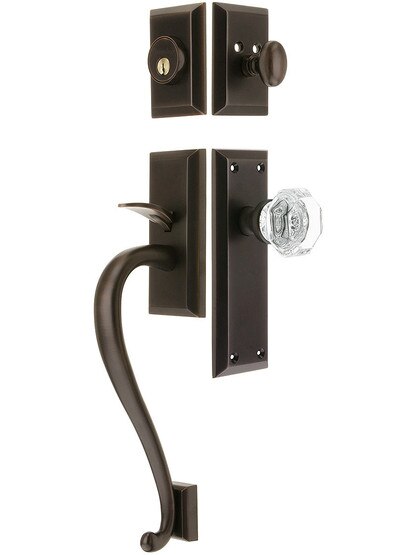

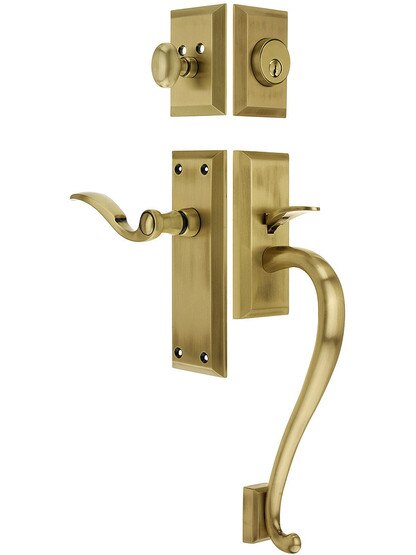

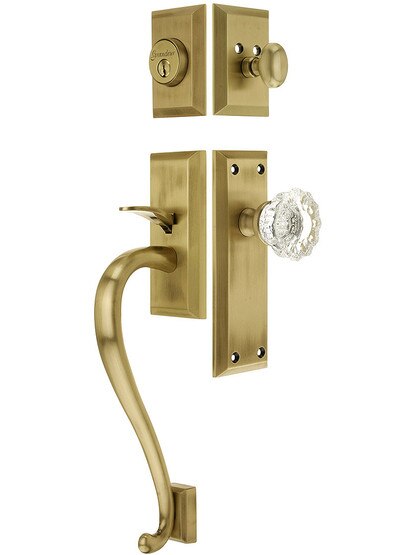

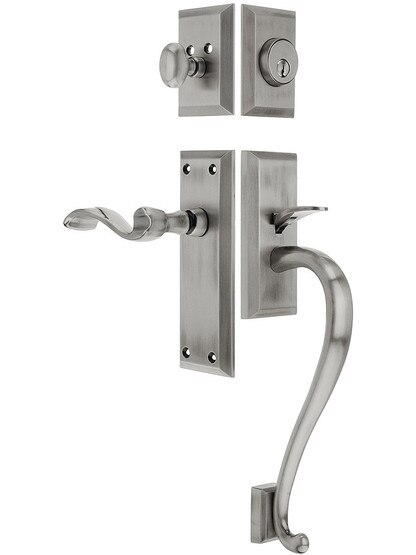

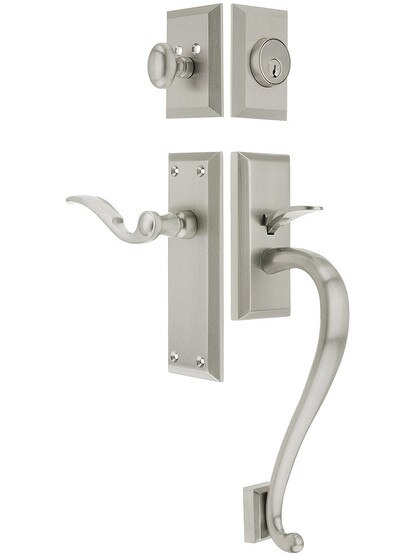

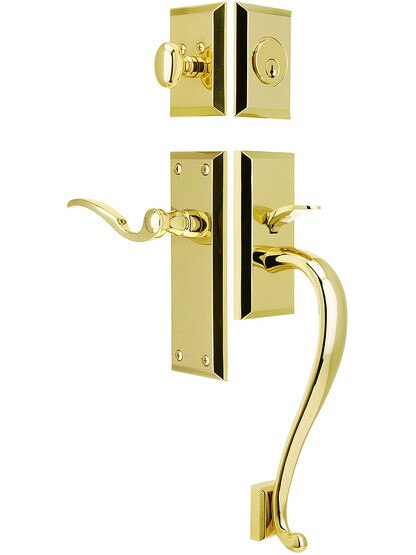

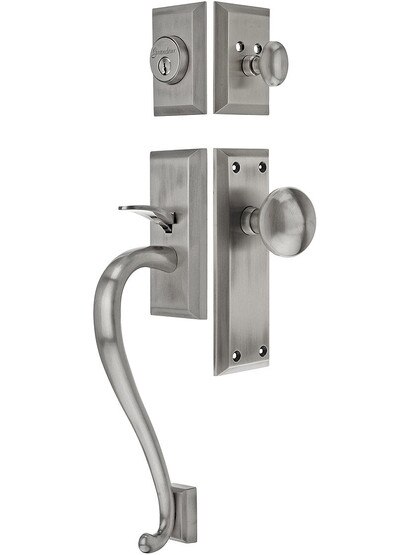

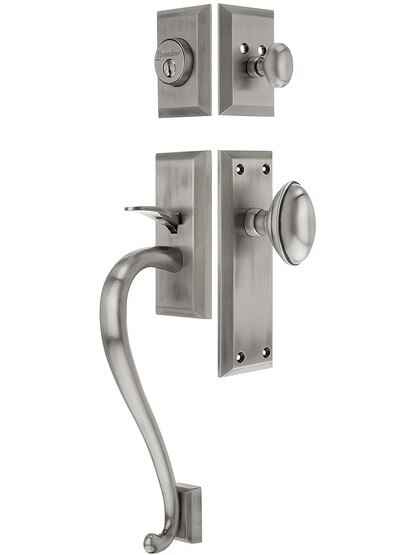

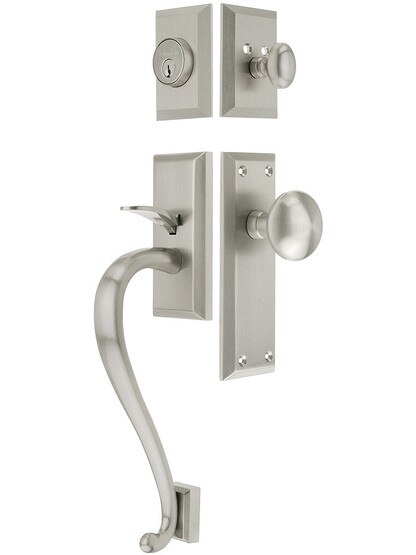

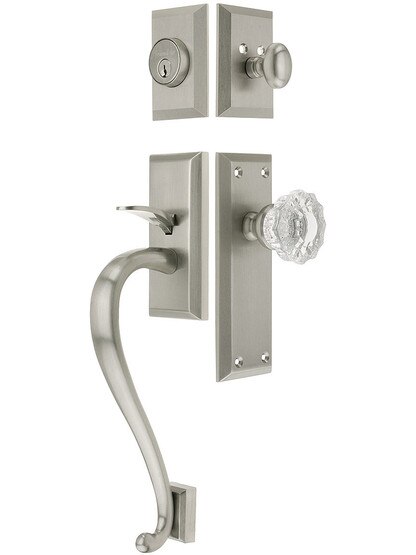

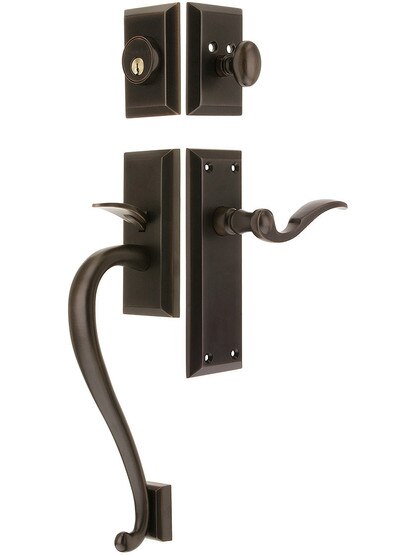

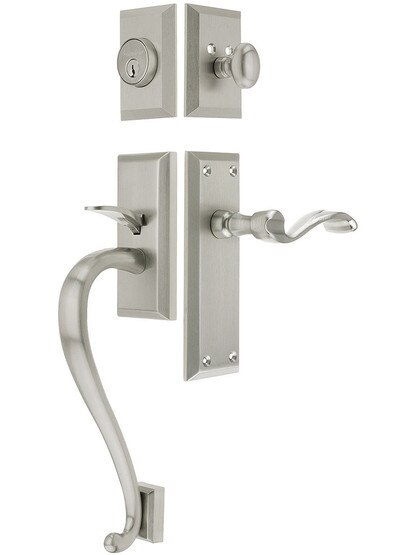

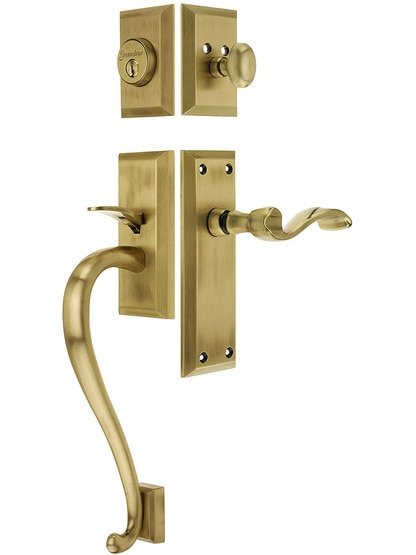

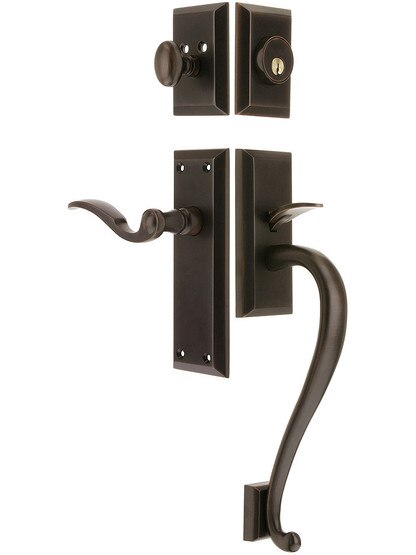

Timeless, urbane, and ever-so understated, the "Fifth Avenue" is one of our most versatile entry sets. Featuring crisp beveled plates and a sweeping hand grip, this classic turn-of-the-century design goes with everything, from late Victorian to Mid-Century Modern. With 5 finishes and 7 interior handle options - including levers, 24% lead crystal knobs, and solid brass knobs - you can personalize this set to reflect your unique style!

Grandeur's vintage-style doorsets are enhanced with high-tech mechanics, resulting in silky smooth, trouble-free operation unlike anything you've ever experienced. Created expressly for modern, pre-drilled doors, installation is quick and easy for professionals or home owners alike. Exceptional forgings, top quality materials, and a 10 year warranty make Grandeur entry hardware the perfect choice for your fine home.

Door set dimensions: Exterior handle is 9 1/2" H. Exterior handle backplate is 5 1/4" x 2 1/2". Interior backplate is 7 1/4" H x 2 1/2" W.

Latch dimensions: Backset is 2 3/8" or 2 3/4" - specify when ordering. Latch case: 1" diameter. Latch face plate: 2 1/4" H x 1" W.

Deadbolt specs: Decorative face plates are 3 1/2" H x 2 1/2" W. The deadbolt has a pick-resistant Schlage C keyway and a 1" throw. Multiple sets on one order will be keyed alike unless otherwise requested. To key individually or to match a specific key number, please call to place your order. A double keyed cylinder is available upon request.

This set will fit doors from 1 3/4" - 2 1/4" in thickness, with a minimum 4 3/8" center to center boring for the latch and deadbolt. A "thick door kit" for doors from 2 1/4" - 2 1/2" in thickness is available for a small fee. Other options, including dummy sets, split finishes, and additional knob and interior plate styles, are available by special order. Please call for details.



Hardware Tip:
Thumblatch: Usually refers to an entry door set which has a lever above the handle, which when depressed by the thumb, unlatches the door. Learn about hardware >
Door Set Functions
Function Description Includes
Entry
Entry
Latch and lock - The door is opened by a thumb latch on the exterior and by a knob/lever on the interior. The locking deadbolt is operated by a key from the outside and by a thumbturn on the inside.
  • 1 Grip handle with thumbpiece and backplate
  • 1 Knob/Lever
  • 1 Interior backplate/rosette
  • 1 Lock cylinder with matching backplate
  • 1 Thumbturn with matching backplate
  • 2 Keys
  • 1 Passage latch with matching face plate
  • 1 Deadbolt with matching face plate
  • 1 Matching latch strike plate
  • 1 Matching deadbolt strike with reinforcer
  • Matching screws
  • All necessary mounting accessories
