PVD PVD
Finish
Antique Brass Antique
Brass
Timeless Bronze Timeless
Bronze
Satin Nickel Satin
Nickel
Antique Pewter Antique
Pewter
VIDEO ZOOM LARGE/ALTERNATE VIEWS
Features
  • Premium Brass Forging for Exceptional Detail
  • Elegant Design for Luxurious Style
  • Pre-Attached Levers Offer Easy Installation
  • Precision Spring Assist Provides Smooth Operation
  • Lifetime Mechanical and 10-Year Finish Warranty
Details
Style Mid-Century
Item Sold As Complete Set for One Door
Included Hardware All necessary mounting accessories
Usually Ships In 3 to 5 Business Days More info >
Warranty Lifetime Mechanical & 10 Year Finish
Read Product Questions & Answers




Quantity:




Description & Dimensions

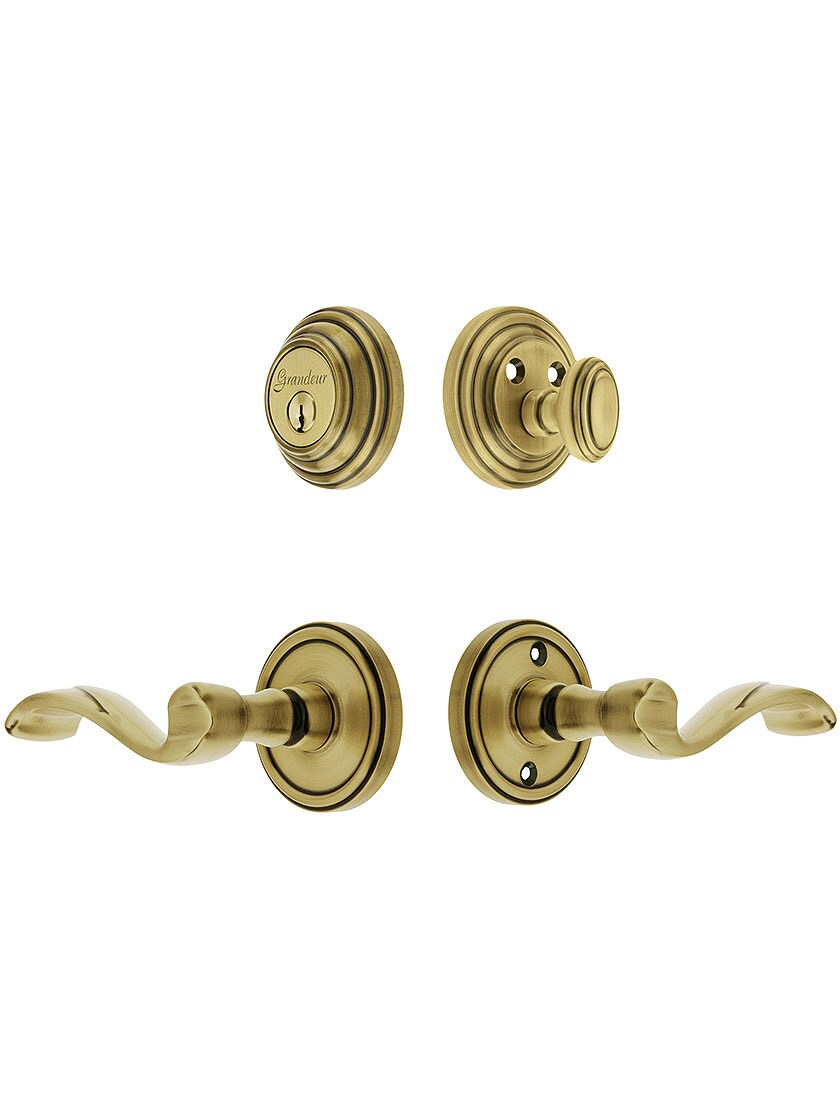

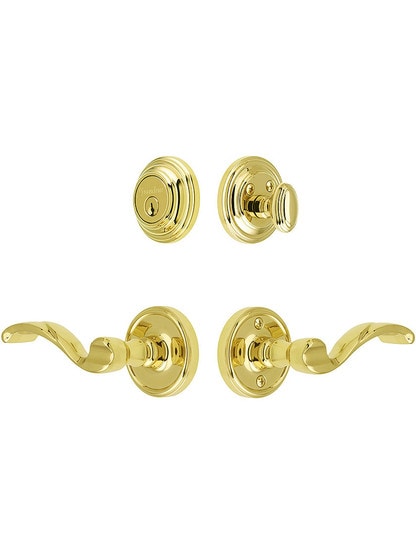

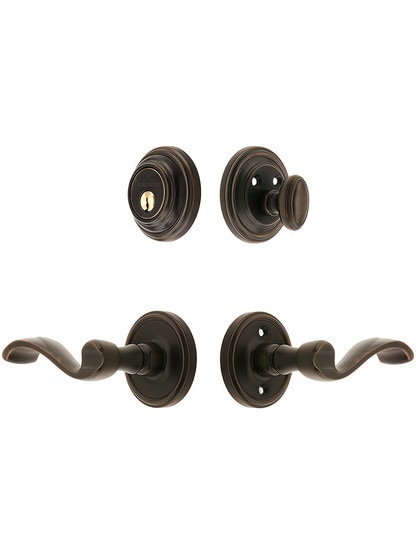

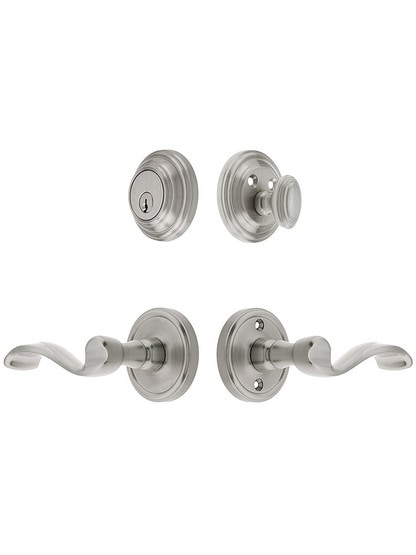

The clean and simple lines of Grandeur's Georgetown entry set work beautifully with mid-century or contemporary home styles. Classic round rosettes are paired with curvy Portofino levers, which are as pleasing to the hand as to the eye, and ADA compliant as well.

Grandeur's door set designs are enhanced with high-tech mechanics, resulting in silky smooth, trouble-free operation unlike anything you've ever experienced. Created expressly for modern, pre-drilled doors, installation is quick and easy for professionals or home owners alike. Exceptional solid brass forgings and a 10 year warranty make Grandeur entry hardware the perfect choice for your fine home.

Door set dimensions: Portofino levers are 4 5/8" L. Georgetown rosettes are 2 5/8" in diameter.

Latch dimensions: Backset is 2 3/8" or 2 3/4" - specify when ordering. Latch case: 1" diameter. Latch face plate: 2 1/4" H x 1" W.

Deadbolt specs: Diameter of face plate is 2 5/8". The deadbolt has a pick-resistant Schlage C keyway and a 1" throw. Multiple sets on one order will be keyed alike unless otherwise requested. To key individually or to match a specific key number, please call to place your order.

This set will fit doors from 1 3/4" - 2" in thickness, with a minimum 5 1/2" center to center boring for the latch and deadbolt. A "thick door kit" for doors from 2" - 2 1/2" in thickness is available for a small fee. Please call for details.



Hardware Tip:
Forged: Process of forming brass or other metals into a particular shape by heating the metal and hand pounding or cutting with high pressure dies. Items made in this way are very strong and heavy. Learn about hardware >
Door Set Functions
Function Description Includes
Entry
Entry
Latch and lock - The door is opened by a knob/lever on the exterior and on the interior. The locking deadbolt is operated by a key from the outside and by a thumbturn on the inside.
  • 2 Knobs/levers
  • 2 Back plates/rosettes
  • 1 Lock cylinder with matching backplate
  • 1 Thumbturn with matching backplate
  • 2 Keys
  • 1 Passage latch with matching face plate
  • 1 Deadbolt with matching face plate
  • 1 Matching latch strike plate
  • 1 Matching deadbolt strike with reinforcer
  • Matching screws
  • All necessary mounting accessories
