Features
  • Heavy Cast Brass
  • Historic Pattern Appropriate for Restoration
  • Authentic Aged Patina
  • Reversible for Left or Right Handing
  • Complete with Mortise Lock Designed for Vintage Doors
Details
Style Arts & Crafts
Item Sold As Complete Set for One Door
Included Hardware All necessary mounting accessories
Usually Ships In 1 to 2 Business Days More info >
Warranty 5 Year Warranty
Read Product Questions & Answers

Quantity:




Description & Dimensions

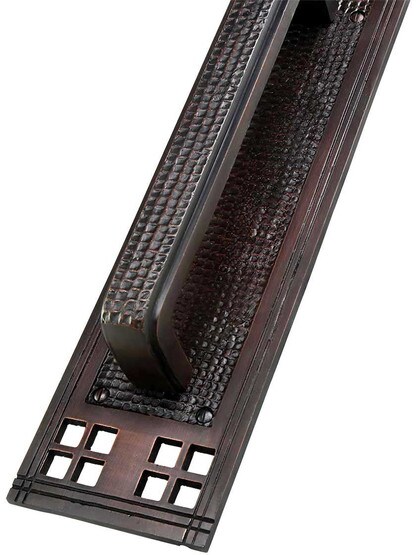

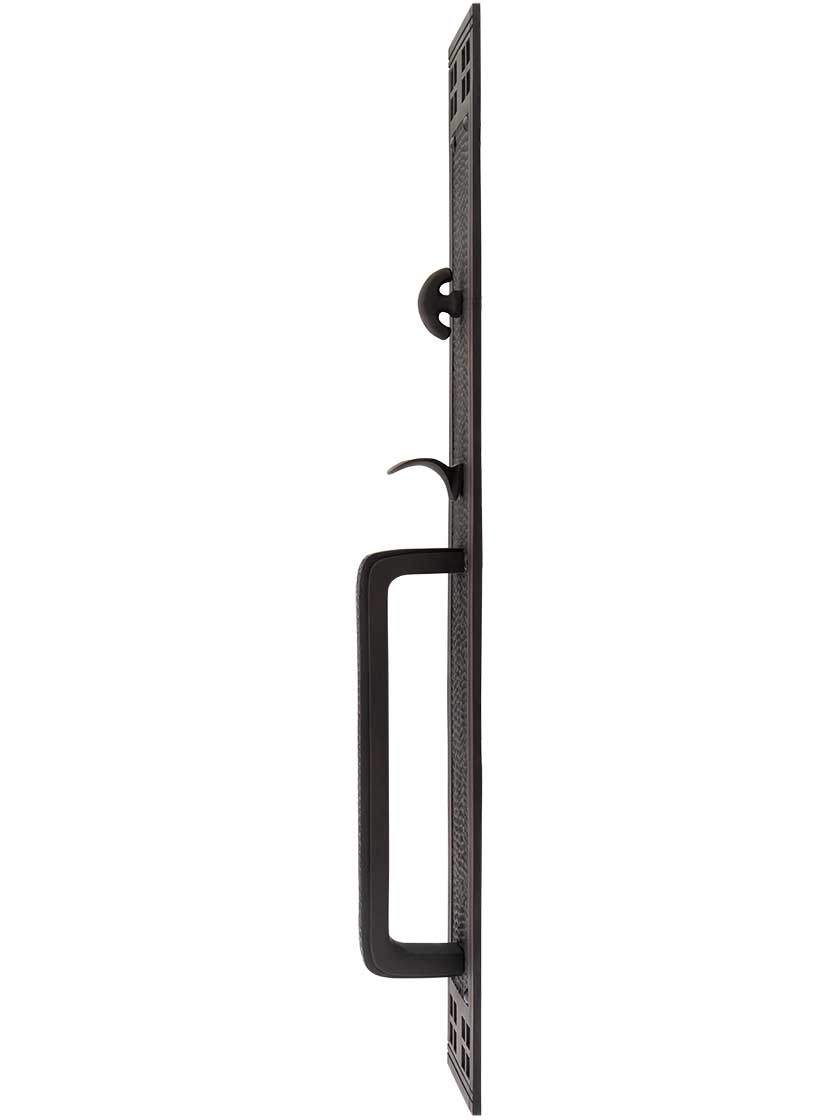

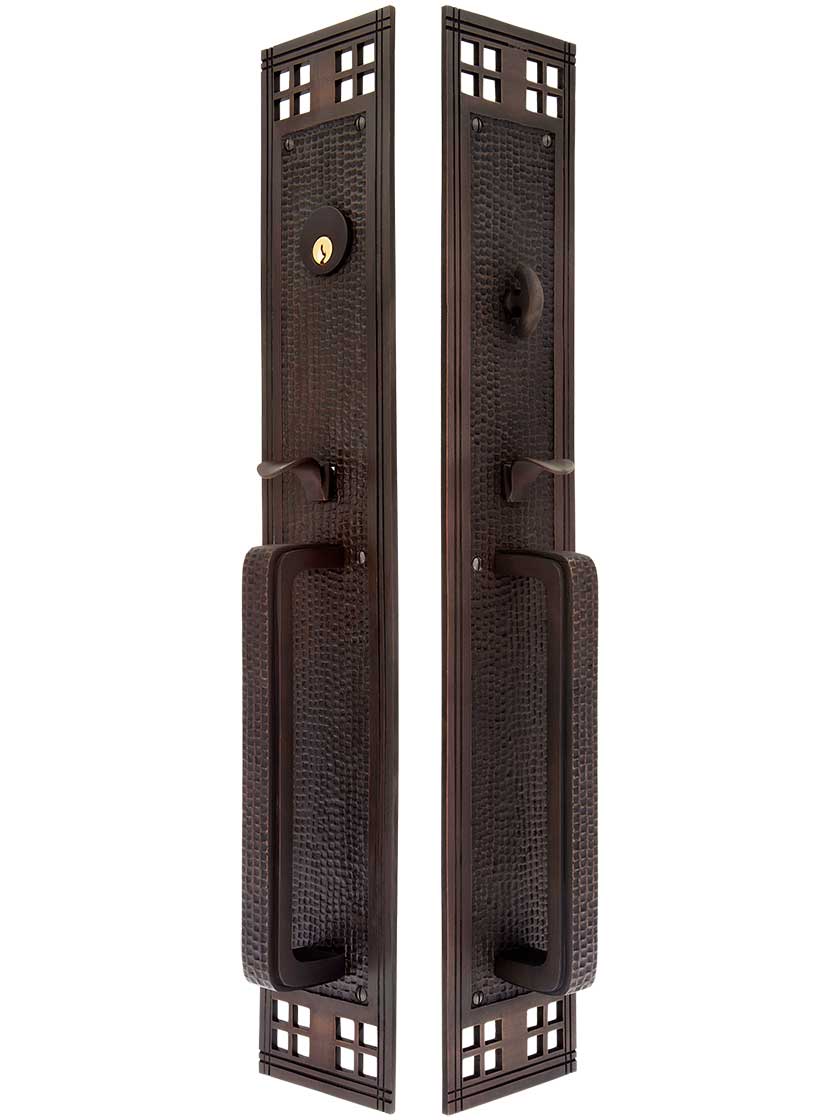

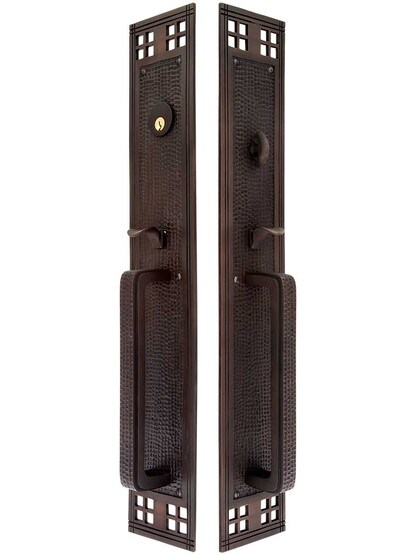

Capture the true spirit of Craftsman design with this rugged and artistic entry door set. The distinctive window-pane pattern, originally known as Bastile, was designed by Pacific Hardware of Los Angeles around 1912. Made of durable cast brass, our reproduction captures the rough, hand-hammered look of the originals. A velvety oiled bronze finish with subtle copper highlights completes the vintage effect. A heavy-duty mortise lock with an auxiliary push-button security function provides top-quality performance and completes the authentic look.

Door set dimensions: Back plates are 21" H x 3 1/2" W and project 1/8".

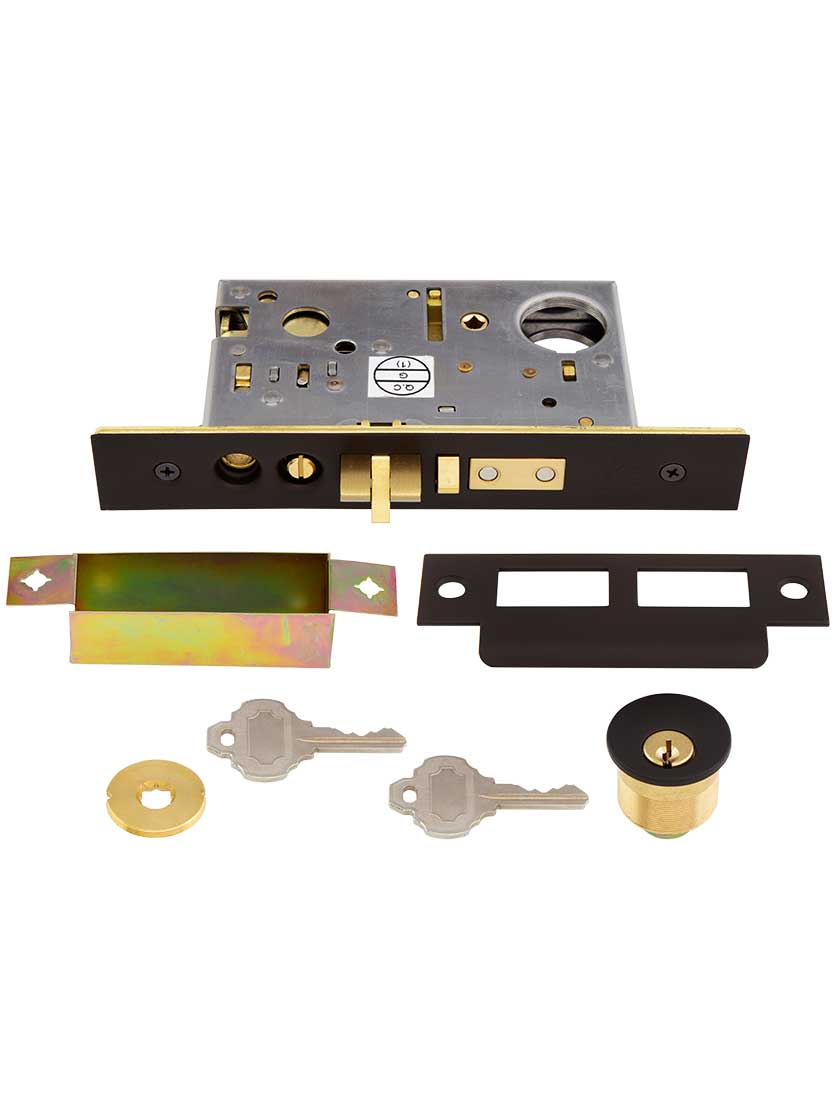

Mortise lock dimensions: Backset is 2 1/2". Lock case: 5 5/8" H x 3 9/16" W x 13/16" T. Lock face plate: 8" H x 1 1/4" W. The brass strike plate measures 4 7/8" tall by 1 1/4" wide with a 5/8" tongue projection. The lock includes a 1" cylinder and 2 standard keys.

This set is designed to fit doors from 1 5/8" to 1 7/8" thick. For thicker doors (max. 2 1/4"), other backsets or double cylinder sets, please call for assistance.



Hardware Tip:
Thumblatch: Usually refers to an entry door set which has a lever above the handle, which when depressed by the thumb, unlatches the door. Learn about hardware >
Door Set Functions
Function Description Includes
Entry
Entry
Latch and lock - The door is opened by thumb latch on the exterior and on the interior. On the deadbolt, there is a keyed lock cylinder for use on the outside of the door while a thumb turn is used to lock the door on the interior.
  • 1 Grip handle with thumb piece
    and cutout for lock cylinder
  • 1 Grip handle with thumb piece
    and thumbturn for locking
  • 1 Entry mortise lock with keyed
    cylinder and two keys
  • 1 Matching lock strike plate
  • Matching screws
  • All necessary mounting accessories
