Features
  • Solid Brass Construction for Durability
  • Available in 4 Finishes
  • Reversible for Left or Right Handing
  • Heavy Duty Steel Lock Case With Built In Edge Pull
Details
Style Colonial / Arts & Crafts / Mid-Century
Item Sold As Complete Set for One Door
Included Hardware All necessary mounting accessories
Usually Ships In 1 to 2 Business Days More info >
Warranty Lifetime Mechanical & 5 Year Finish
Read Product Questions & Answers



Quantity:




Description & Dimensions

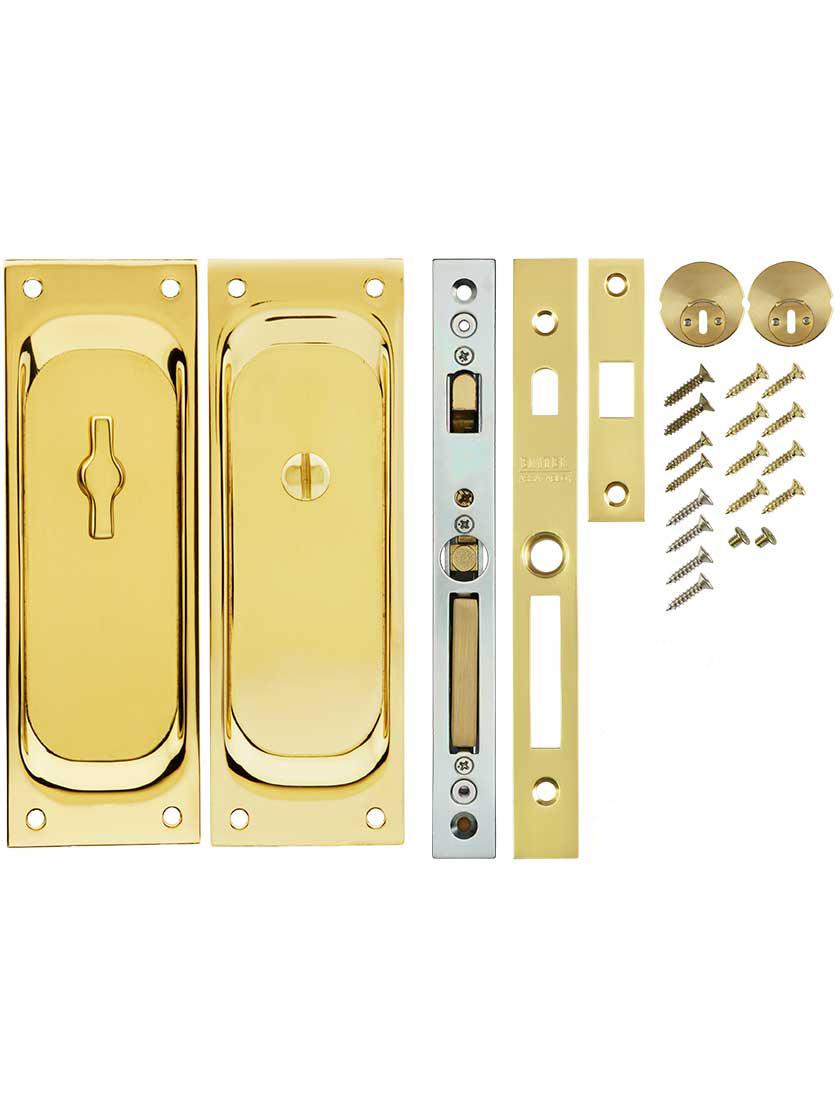

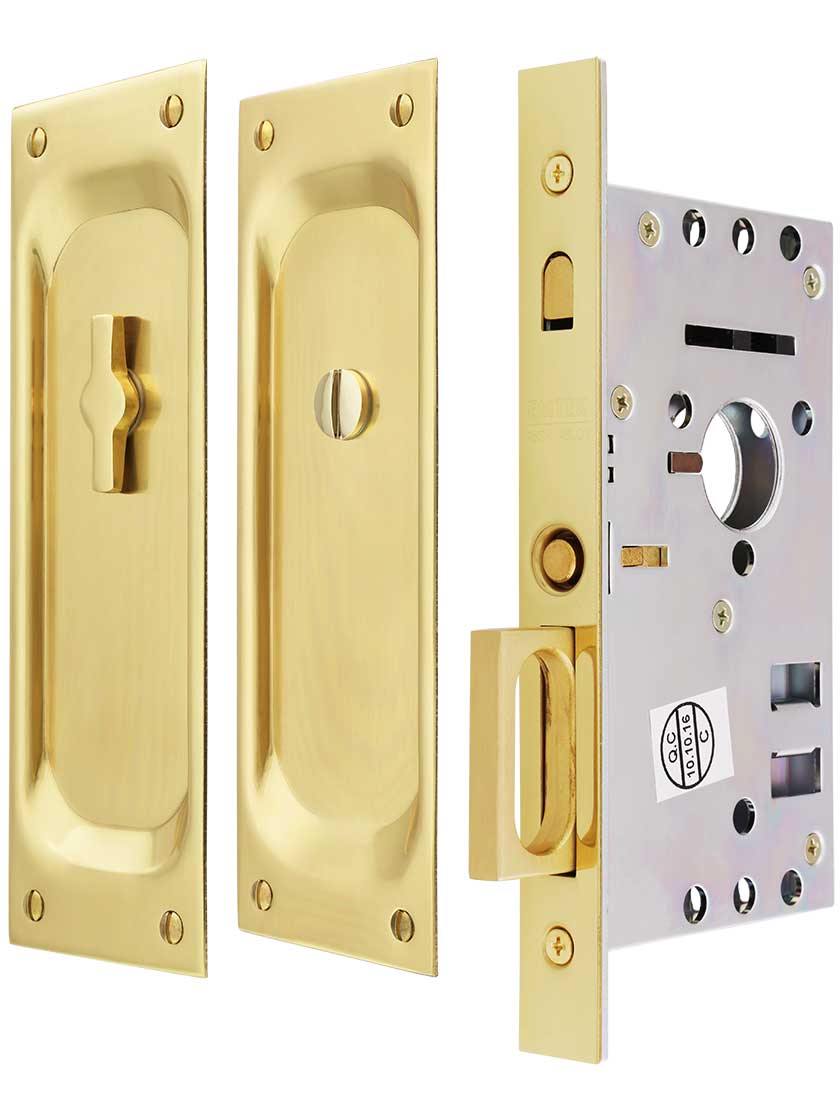

Vintage character, quality construction and a handy thumb turn locking solution, make this mortise pocket door set a great choice for any room requiring privacy. Including traditional rectangular trim, a spring-loaded edge pull and your choice of 4 classic finishes, this solid brass set will do the job in style. For a complete double pocket door set, combine this locking set with the matching dummy mortise case & pulls (RS-06EM-2106X).

The lock is activated from the inside by the bow-shaped thumb turn. The latch bolt is held in place by the included strike or dummy mortise case (for double doors - purchase separately). An emergency release button on the exterior allows the door to be unlocked with a common screwdriver. To release the integrated edge pull, simply push the button above the pull. This set is designed for doors between 1 3/8" and 1 3/4" in thickness.

Dimensions. Surface Trim: 7 1/2" H x 2 1/2" W x 1/16" T. The recessed portion of the pulls must be mortised 1/4" into the door. Lock backset: 2 3/16". Faceplate: 8" H x 7/8" W X 1/16" Thick. Strike plate: 3 1/2" H x 3/4"W. Lock case: 5 3/4" H x 3 1/2" W x 9/16" thick.



Hardware Tip:
The thickness of your pocket door must be greater than the sum of the mortise depth measurements for two pulls plus the thickness of the lock case. Learn about hardware >
