Features
  • Solid Brass Construction for Durability
  • Available in 4 Finishes
  • Reversible for Left or Right Handing
  • Heavy Duty Steel Lock Case With Built In Edge Pull
Details
Style Colonial / Arts & Crafts / Mid-Century
Item Sold As Complete Set for One Door
Included Hardware All necessary mounting accessories
Usually Ships In 1 to 2 Business Days More info >
Warranty Lifetime Mechanical & 5 Year Finish
Read Product Questions & Answers



Quantity:




Description & Dimensions

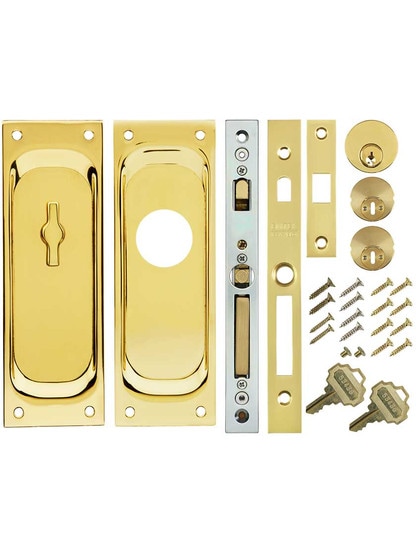

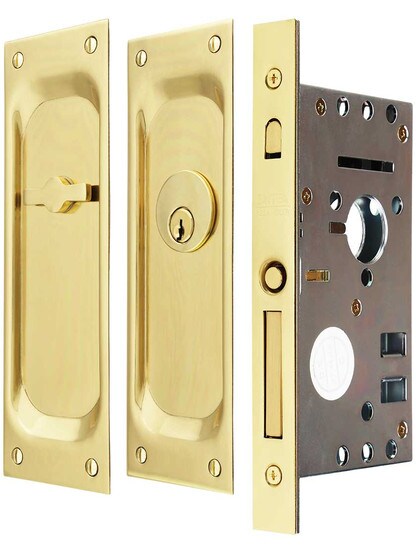

This premium quality pocket door lock set features a keyed cylinder lock, thumb-turn emergency release and an integrated edge pull. The substantial surfaced pulls and lock face are made of solid, wrought brass in your choice of 4 classic finishes. With its slim lock case and nearly flush surface pulls, it's a great choice for thin pocket doors with a tight frame clearance. For a complete double pocket door set, combine this locking set with the matching dummy set.

The lock is activated from outside by a standard key and from inside by the thumb-turn. When locked, the latch bolt is held in place by the included strike or dummy mortise case (for double doors - purchase separately). To release the integrated edge pull, simply push the button located above the pull. This set is designed for doors between 1 3/8" and 1 3/4" in thickness.

Dimensions. Surface Trim: 7 1/2" H x 2 1/2" W x 1/16" T. The recessed portion of the pulls must be mortised 1/4" into the door. Lock backset: 2 3/16". Faceplate: 8" H x 7/8" W X 1/16" Thick. Strike plate: 3 1/2" H x 3/4"W. Lock case: 5 3/4" H x 3 1/2" W x 9/16" thick.



Hardware Tip:
The thickness of your pocket door must be greater than the sum of the mortise depth measurements for two pulls plus the thickness of the lock case. Learn about hardware >
