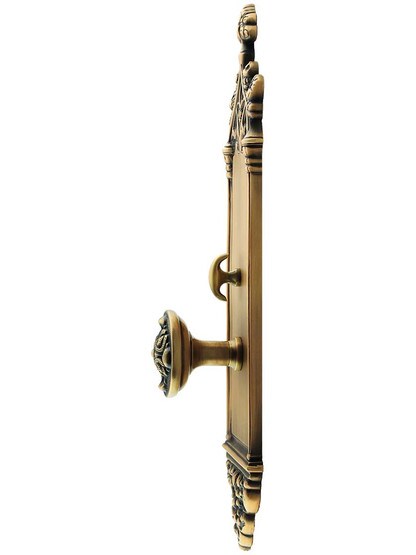

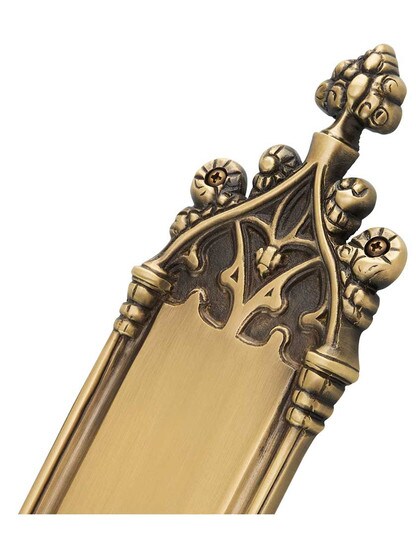

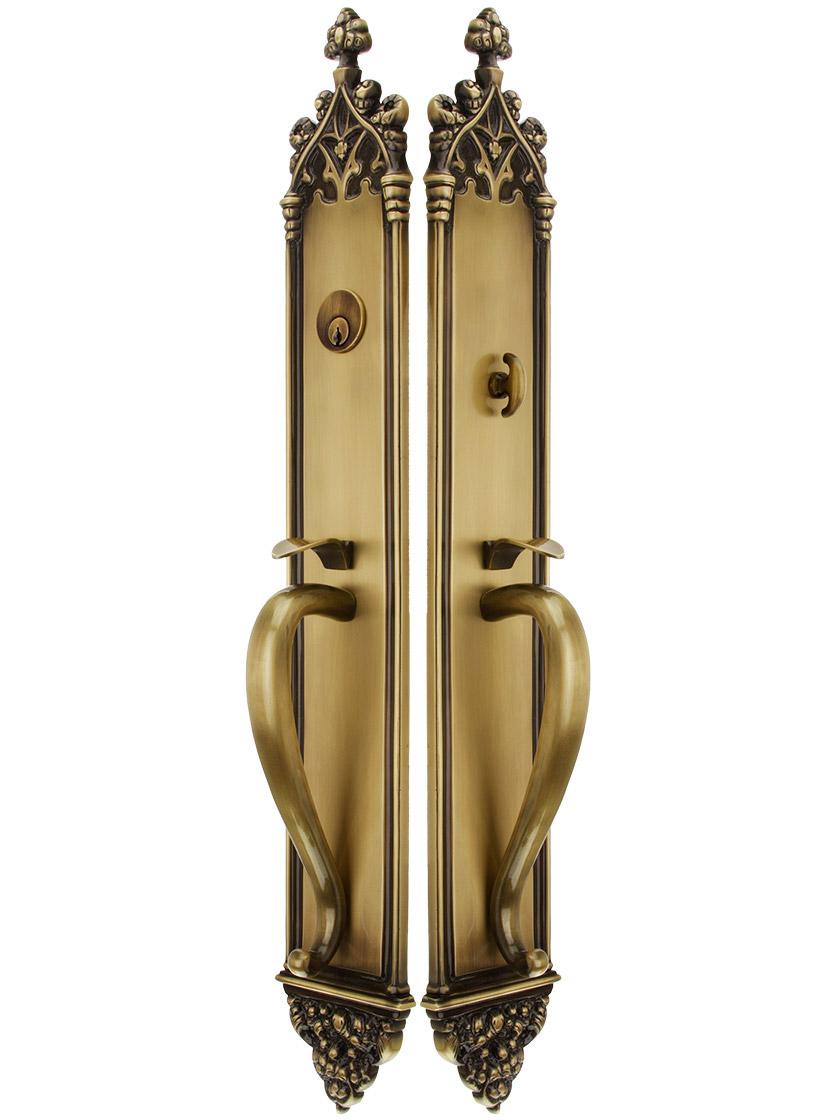

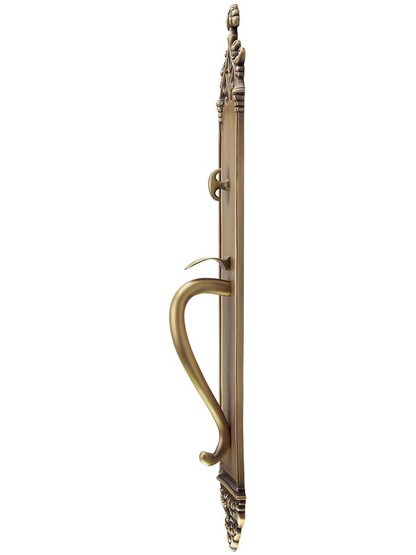

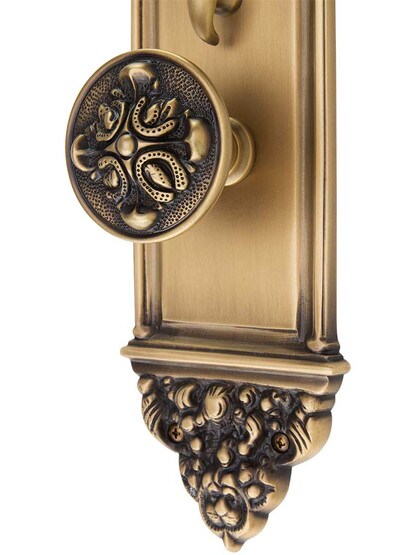

At the end of the 19th century, Gothic Revival hardware was a popular choice for elegant homes and institutions. This authentic Yale & Towne design features trefoil cut outs, stylized finials and your choice of Maltese knobs or "S" handles, all crafted from durable cast brass. Bold and nostalgic, it greets your guests in true romantic style!
Door set dimensions. Exterior plate: 23 3/4" H x 3 3/8" W. Interior plate (handle option): 23 3/4" H x 3 3/8" W. Interior plate (knob option): 16" H x 3 3/8" W . Interior handle: 8 1/2" L x 2 3/4" P. Interior knob: 2 1/2" D x 3" P. Knob/Handle projection includes back plate thickness.

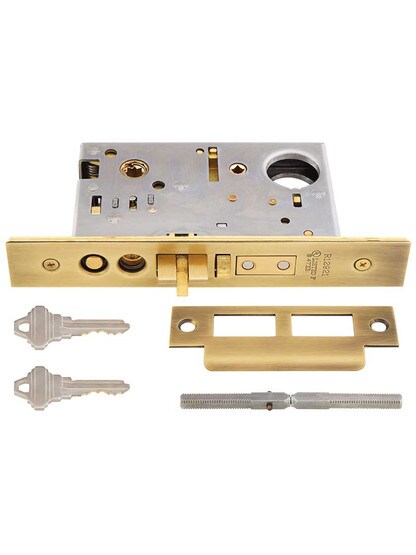

Mortise lock dimensions. Faceplate: 8" H x 1 1/4" W. Lock Body: 5 1/2" H x 3/4" W x 3 3/8" D. Backset: 2 1/2". Strike plate: 4 7/8" H x 1 1/4" W. Tongue: 3/8"
Deadbolt specs. Double and single cylinder options are available and must be specified when ordering. Multiple sets on one order will be keyed differently unless otherwise requested. To key alike or to match a specific key number, please call to place your order.
This set will fit doors 1 3/4" in thickness. The mortise lock is reversible for left or right handing on doors opening in or out. Instructions are included. Other options, including dummy sets, thicker doors, split finishes, and additional knob and interior plate styles, are available by special order. Please call to order.
Mortise Lock: Old style box lock that is installed into a deep pocket or “mortise” in the edge of the door. Generally, the mortise lock houses both the latch and dead bolt in one unit. Learn about hardware >
Door Set Functions
Latch and lock - The door is opened by thumb latch on the exterior and a knob/lever on the interior. On the outside there is a keyed lock cylinder to lock and unlock the door while a thumb turn is used to lock the door on the interior.
1 Grip handle with thumb piece
1 Knob/lever and backplate/rosette
1 Escutcheon with cylinder hole
1 Escutcheon with thumbturn
1 Entry mortise lock with keyed cylinder and two keys
