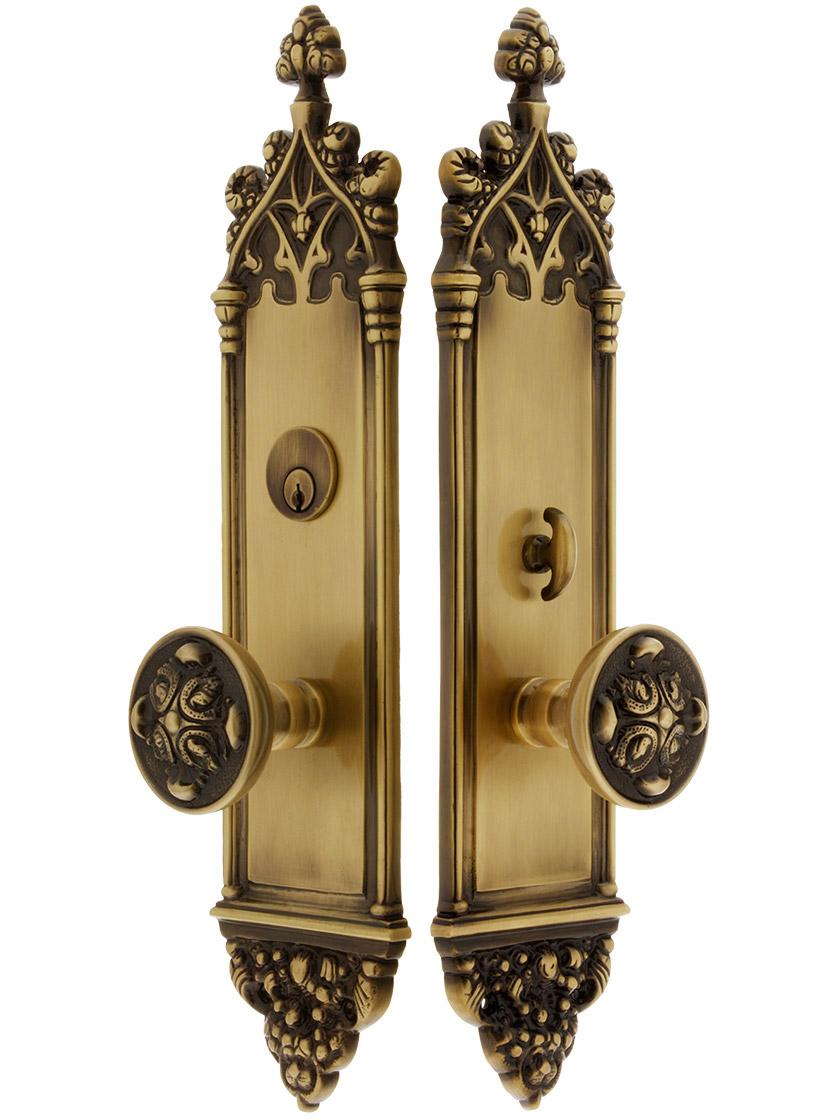

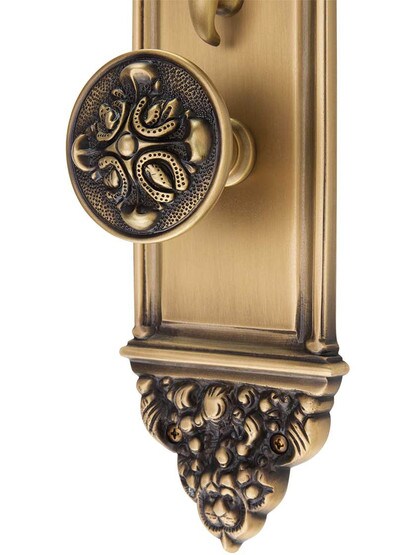

At the end of the 19th century, Gothic Revival hardware was a popular choice for elegant homes and institutions. This authentic Yale & Towne design features trefoil cut outs, stylized finials and matching Maltese crest knobs, all crafted from durable cast brass. Bold and nostaligic, it greets your guests in true romantic style!

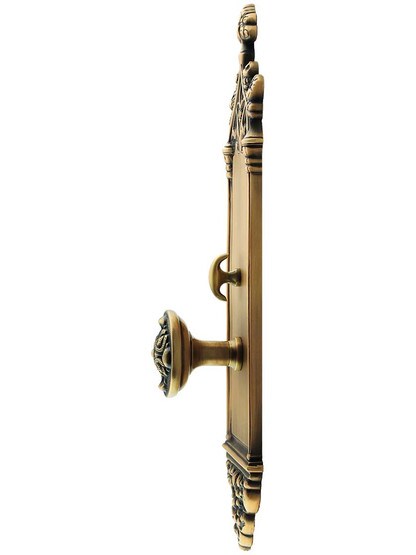

Door set dimensions. Backplates: 16" H x 3 3/8" W. Knobs: 2 1/2" D x 3" P (including back plate thickness).
Mortise lock dimensions. Faceplate: 8" H x 1 1/4" W. Lock Body: 5 1/2" H x 3/4" W x 3 3/8" D. Backset: 2 1/2". Strike plate: 4 7/8" H x 1 1/4" W. Tongue: 3/8"
Deadbolt specs. Double and single cylinder options are available and must be specified when ordering. Multiple sets on one order will be keyed differently unless otherwise requested. To key alike or to match a specific key number, please call to place your order.
This set will fit doors 1 3/4" in thickness. The mortise lock is reversible for left or right handing on doors opening in or out. Instructions are included. Other options, including dummy sets, thicker doors, split finishes, and additional knob and interior plate styles, are available by special order. Please call to order.
Mortise Lock: Old style box lock that is installed into a deep pocket or “mortise” in the edge of the door. Generally, the mortise lock houses both the latch and dead bolt in one unit. Learn about hardware >
Door Set Functions
Latch and lock - The door is opened by door knob on the exterior and on the interior. On the deadbolt, there is a keyed lock cylinder for use on the outside of the door while a thumb turn is used to lock the door on the interior.
1 Backplate with door knob and cutout for lock cylinder
1 Backplate with door knob and thumbturn for locking

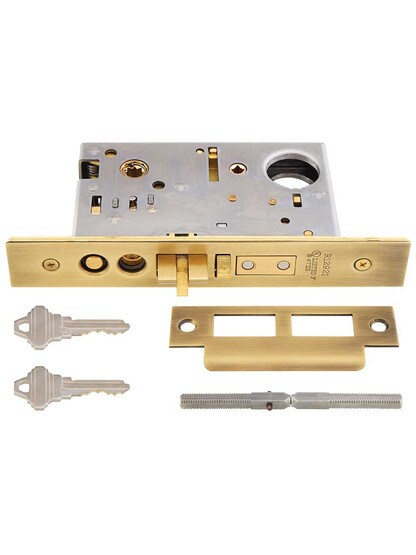

1 Entry mortise lock with keyed cylinder and two keys
